Thin Film Resistor Networks come in small outline packages.
May 15, 2009 -
Housed in surface mount SON packages, SFN Series comes in custom, isolated, bussed, and voltage divider circuit configurations. Units are offered in 6-pad, 2 mm² outline with 0.65 mm pad pitch as well as 8-pad, 4 mm² outline with 0.8 mm pad pitch. Available with 2, 4, or 7 resistors, standard networks feature nominal resistance ranges from 10 W to 100 KW with absolute tolerance to ±0.25% and ratio tolerance to ±0.05%.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
BI Technologies Corp.
4200 Bonita Place
Fullerton, CA, 92835-1051
USA
BI Technologies Develops Thin Film Resistor Networks in Small Outline, Leadless Packages
Networks packaged in one of the industry's smallest PCB footprints per lead count...

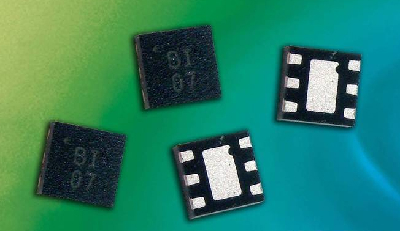

LAS VEGAS, NV (May 12, 2009) - Providing design engineers with a significant amount of PC board space savings, TT electronics BI Technologies has developed a new series of thin film resistor networks. Designated the SFN Series, the networks are housed in surface mount SON (Small Outline, No Lead) packages, and are available in custom, isolated, bussed and voltage divider circuit configurations.
"These SFN Series networks feature one of the smallest PC board footprints per lead count in the industry. Compared to traditional 3-lead SOT23 and 8-lead SOIC packages, the networks offer a 40% and 46% size reduction, respectively," said Mike Torres, BI Technologies' fixed film product manager. "With the small package size and variety of configurations, the networks are ideal for a myriad of applications, including electronic measurement equipment, semiconductor processing equipment, ultrasound equipment, and flight control systems."
The thin film resistor networks are also specified for precision analog circuits such as instrumentation amplifiers, precision voltage dividers, measurement bridges, low noise circuitry, ladder networks and converter applications.
The SFN Series SON package style is offered in a 6-pad, 2mm square outline with a pad pitch of 0.65mm, as well as an 8-pad, 4mm square outline with a pad pitch of 0.8mm. Custom circuits are available in either package style, while voltage divider circuits are offered in the 6-pad SON package. Isolated and bussed circuit configurations are offered in the 8-pad SON package.
Standard SFN Series networks are available with two, four or 7 resistors. Nominal resistance ranges from 10W to 100KW, with absolute tolerance to ±0.25% and ratio tolerance to ±0.05%. TCRs are to ±25ppm/°C and TCR tracking is to ±5ppm/°C. BI Technologies will also produce devices outside these specifications to meet specific customer requirements.
Typical pricing for the SFN Series networks in voltage divider layout is $0.50 each. Lead time is from stock to 12 weeks.
For more information about BI Technologies' thin film resistor networks, contact BI Technologies at 714-447-2345, by fax at 714-388-0046; by mail at 4200 Bonita Place, Fullerton, CA 92835; or visit: http://www.bitechnologies.com/pdfs/SS... and
http://www.bitechnologies.com/pdfs/SF....
BI Technologies has been an innovator and leader in electronic components for more than 50 years. The company is a global manufacturer of trimming and precision potentiometers, position sensors, turns-counting dials, chip resistor arrays, resistor networks, integrated passive networks, transformers, inductors, hybrid microelectronics and custom integration products for communication, computer, automotive and industrial applications.
BI Technologies serves a global customer base with manufacturing locations in the United States, Mexico, Scotland, Japan, China and Malaysia.
TT Electronics plc is a global electronics company manufacturing a broad range of advanced electronic components, assemblies and sensor modules for the automotive, industrial, telecommunication, computer and aerospace markets.
|
|
|
|
|
|
|
|
