Temporary Power Distribution System features 25 KVA rating.
May 4, 2012 -

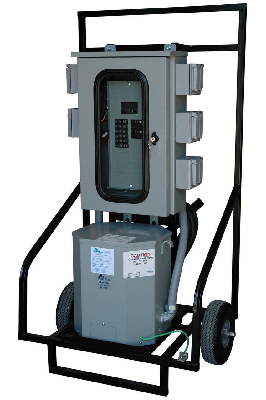

Converting 3-phase 480 Vac current to single-phase 240/120 Vac, Model MGL25-8C-480-120V-GFI lets operator safely tap into high voltage power sources for equipment and lighting. Single main on/off switch with fused disconnect provides primary line protection. Secondary output is made available through six 20 A, 120 V, GFI-protected waterproof duplex receptacles and two 30 A, 250 V receptacles. Featuring NEMA 4/12 rated enclosure, system has cart-style steel frame with 2 rubber tires for portability.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
Larson Electronics, LLC
9419 E US Hwy. 175
Kemp, TX, 75143
Larson Electronics' Magnalight.com Introduces 25 KVA Temporary Power Distribution System
The Magnalight MGL25-8C-480-120V-GFI temporary power distribution system converts three phase 480 VAC electrical current to single phase 120V AC and 240V AC for operations where standard grid power is unavailable or impractical. Integral GFI breaker and fused protection, multiple 120 VAC and 240 outlets, and a 25KVA rating provides operators with versatile and safe connection options and the ability to power a wide variety of equipment and devices from a single primary 480 VAC power source.
The MGL25-8C-480-120V-GFI temporary power distribution system converts three phase 480 VAC current to commonly used single phase 240 and 120 VAC via a 25 KVA transformer and allows operators in industrial work operations to safely tap into high voltage power sources and provide power for equipment and lighting that requires standard voltages. This unit is designed to step down three phase 480 VAC to single phase 120 VAC and 240 VAC and connects to the primary 480 V source via an included 50 feet of line power cord with a 60amp, 480v, 3 phase /4 wire male plug. A single main on/off switch with fused disconnect provides primary line protection and supplies primary power to the heavy duty transformer. The 25KVA transformer steps 480V current down to single phase 120 and 240 VAC which is fed through a 120/240v, 1 phase, 125 amp load center with main breaker. Secondary output is made available through six 20 amp, 120 volt, GFI protected waterproof duplex receptacles and two 30amp, 250v receptacles. Additional protection on the secondary side is provided by six - 20amp, 125 Volt, 1 pole breakers and 2 - 30amp, 250v, 2 pole breakers. The entire load center on this heavy duty power distribution system is housed within a NEMA 4/12 rated enclosure for durable protection from the elements and an optional glass door allows operators to easily inspect the load center for maintenance purposes. This temporary power substation provides easier setup in the work area with a standard cart style steel frame equipped with two rugged rubber tires, which allows operators to easily tilt the unit and roll it into position as needed. This durable steel frame is securely grounded to the transformer/load center assembly, and is supplied with a durable finish to resist rust and corrosion and a rear mounted cord rack for storing the included 50 feet of primary connection cord. This unit is capable of powering a wide variety of equipment and devices that require 120 or 240 VAC current, and is ideal for lighting loads up to 1250 watts as well. This power distribution system is NEMA 4/12 rated for protection against accidental contact, rain, dust, splashing water, and sprayed water and ideal for new construction, plant turnarounds, shipyards, and work environments where normal 120 and 240 VAC current is unavailable.
"The MGL25-8C-480-120V-GFI gives operators needing a temporary power distribution system an easily maneuvered substation mounted to a steel cart with rubber wheels that is NEMA 3R rated and ideal for indoor/outdoor use and applications, said Rob Bresnahan with Larson Electronics' Magnalight.com. "During maintenance outages in large facilities this distribution system can be invaluable for giving operators usable 120/240 volt power for powering lights and equipment when the only power available is 480 volt. The secondary power setup on this unit can be customized to your specialized needs."
Larson Electronics' Magnalight.com manufactures and distributes a wide variety of power distribution substations, solar powered generators, inline transformers, hazardous location lights, intrinsically safe lights and a large line of explosion proof equipment and accessories. Visit Magnalight.com to learn more or call them at 1-800-369-6671 or 1-214-616-6180 for international orders and questions.
