Temperature Controls react instantly to temperature changes.
November 9, 2005 -
With temperature range to 550°F, Series TDH-6 offers pumping rates of 90, 150, or 200 gpm; 50-200 kW heater; and heat exchangers from 3.9-21 sq ft. Standard ¼ DIN controls feature NEMA 12 electrical control enclosure, pressure-actuated bypass valve, PID control for heating and cooling, 4 line x 20 character LCD display, as well as setpoint, To Process, From Process, and DT displays. Mechanical seal pump, autovent, auto shutdown, and manual bypass are optional.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
AEC, Inc.
801 AEC Dr.
Wood Dale, IL, 60191
USA

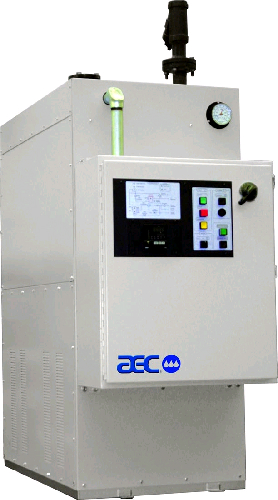

AEC's TDH-6 Provides Precise Temperature Control
Wood Dale, IL-The TDH-6, AEC's newest addition to temperature control, offers a carefully designed and balanced control system that assures sensitivity and instantaneous reaction to temperature changes. Several combinations of heater sizes and pumping rates are available, and cooling controls are optional.
AEC's TDH-6 offers simple and easy to use operation and is ready to operate when power and circulation connections are made. TDH-6 temperature controllers comes standard with pumping rates of 90, 150 or 200 gpm; 50 to 200 kW heater size; heat exchangers from 3.9 sq. ft. to 21 sq. ft.; and a temperature range up to 550°F.
The standard unit, equipped with the E5AK, ¼ DIN control, is available with several options that include: mechanical seal pump, autovent, auto shutdown, manual bypass, shell and tube heat exchanger and the advanced controller package. The advanced controller features a PID control for both heating and cooling, a 4 line x 20 character LCD display screen, setpoint, To Process, From Process and DT displays, start, stop, vent and alarm silence switches and a triac output for both heating and cooling.
Additional standard features include a NEMA 12-style electrical control enclosure with IEC electrical components, disconnect switch, pressure-actuated bypass valve, a system status graphics display and a To Process oil pressure gauge.
In addition to industry leading heating and cooling products, AEC always offers full support from start-up to training to 24-hour on-call service. Further AEC product offerings include material handling, blending and reclaim, size reduction, automation, downstream extrusion and systems contracting. For more information on the TDH-6 or other AEC products, contact Kevin Chudyk at 630-595-1060 or visit our web site at www.aecinternet.com.
|
|
|
|
|
|
|
|
