Temperature Chamber suits medical device testing.
May 14, 2009 -
Designed for engineering testing of pacemakers and defibrillators, TEC1 Thermoelectric Temperature Chamber accurately maintains temperatures from 10-60°C with ±0.1°C control tolerance. Microprocessor-based temperature controller allows ramp/soak programming with up to 40 total steps, while LED readout indicates actual chamber temperature and set point with 0.1° resolution. Additional features include 115 or 230 V operation, auto-tuning, and RS-232C interface.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
TestEquity LLC
6100 Condor Dr.
Moorpark, CA, 93021
USA
Thermoelectric Temperature Chamber for Testing Implantable Medical Devices

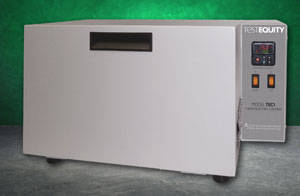

THOUSAND OAKS, CA - TestEquity Model TEC1 is the world's first commercially available Thermoelectric Temperature Chamber. It was designed for engineering testing of pacemakers and defibrillators over a relatively narrow range of temperature.
Thermoelectric devices are ideally suited for this application, were just a little bit of cooling is required. The resulting design is quieter, more reliable, more compact, and weighs less than conventional refrigeration systems which use a compressor.
TestEquity Model TEC1 can accurately maintain temperatures from +10°C to +60°C, with ±0.1°C control tolerance. Thermoelectric (Peltier) Devices are used for cooling and heating instead of a compressor and heater.
The switchable input voltage range provides operation on 115V or 230 V, 50/60 Hz.
Two cable slots allow users to attach wires and sensors to the test sample through both the left and right side of the chamber without disconnecting any wires.
A microprocessor-based temperature controller allows ramp/soak programming with up to four profiles and 40 total steps. A bright LED readout indicates the actual chamber temperature and set point with 0.1° resolution. Auto-tuning allows users to optimize the control response to suit unique applications. RS-232C interface is included. Optional interface for GPIB or LAN is available.
TestEquity Model TEC1 is priced at $3,995. Availability is stock to 6 weeks ARO.
|
|
|
|
|
|
|
|
