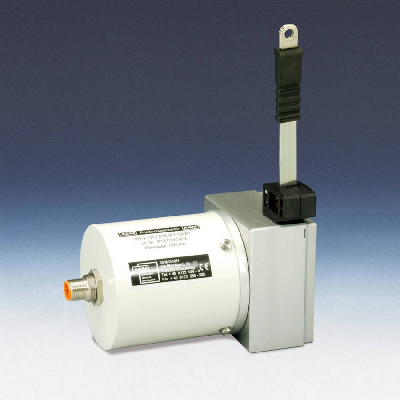

Tape Extension Position Sensor suits pulley applications.
July 26, 2011 -
Constructed with stainless steel tape coiled on precision drum, POSITAPE® WB12 Series provides measuring range of 118 in. with linearity of ±0.05% full scale. Sensor is based on non-contact magnetic encoder, which serves as angle sensor element for tape drum. Series is available with 0.5-10, 0.5-4.5, and 4-20 mA analog outputs as well as SSI, CANopen, and CAN SAE J1939 digital outputs. Featuring IP67 rating with appropriate mating connector, WB12 Series withstands harsh environments.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
ASM Sensors, Inc.
650 W. Grand Ave.
Elmhurst, IL, 60126
USA
ASM Sensors, Inc. Introduces New Tape Extension Sensor Perfectly Suited for Pulley Applications
Elmhurst, IL - ASM Sensors, Inc. has expanded its POSITAPE® line of tape extension
position sensors with the introduction of the WB12 series. The POSITAPE® sensor line was especially developed to extend sensor life in applications that require pulleys. The new WB12 sensor provides a measuring range of 118 inches.
The industrial grade position sensor WB12 is constructed with a custom designed stainless steel tape which is coiled on a precision drum. With its high degree of flexibility, the measuring tape yields an extended life of the sensor. It is perfectly suited in applications that require pulleys due to the tight locations where the sensor must be installed. Since the tape also has very smooth surfaces, the risk of
icing is reduced during cold operating conditions. The integrated tape dust wiper automatically cleans the tape during operation.
The housing of this position transducer has a IP67 (IP69K) rating with the appropriate mating connector. The WB12 series is available with the industry standard 0.5-10V, 0.5-4.5V and 4-20mA analog outputs as well as SSI, CANopen and CAN SAE J1939 digital outputs. The measurement range is 0-118 inches and has a linearity of +/- 0.05% full scale. This sensor also operates under Safety Integrity Level 2 (SIL2).
At the heart of this sensor is a non-contact magnetic encoder which serves as the angle sensor element for the tape drum. The electrical connection is made with bulkhead M12 connector. The rugged design is shock an vibration resistant and makes it suitable for use in harsh environmental conditions. Together with long-life stainless steel tape and compact housing, the WB12 series can be used in a wide range of applications.
ASM Sensors, Inc. is a leading company in the development, manufacturing and marketing of linear and rotary position sensors as well as tilt sensors for use in industrial and commercial applications. With 30 years of experience in serving all sectors of industry, ASM sensors has set industry standards in position measurement by providing innovative products to help automate processes and to increase safety in the workplace.
ASM Sensors, Inc. has its global headquarters in Moosinning, Germany near Munich which is ISO 9001:2000 certified and is where both standard products and customized solutions are manufactured. ASM products are sold worldwide through subsidiaries, sales offices and a network of representatives.
