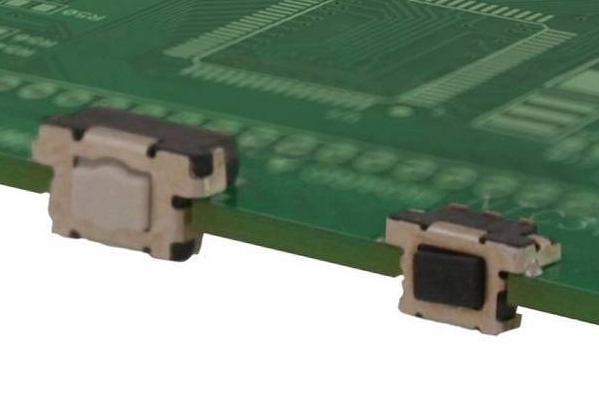

Tact Switches feature board edge mounting design.
June 22, 2011 -
Supplied with SPST, Off-On, momentary configuration, TL4100 and TL4105 series are suited for handheld devices and have life expectancy rating of up to 1,000,000 cycles. Max initial contact resistance is 100 mW for TL4100 and 1 W for TL4105, but both series feature 100 MW min insulation resistance at 500 Vdc, dielectric strength of 250 Vac for 1 min, and contact rating of 50 mA @ 12 Vdc. Operating range is -40 to +85°C, and travel varies from 0.15-0.10 mm.
Original Press release
E-Switch Inc.
7153 Northland Dr., MS-1197
Brooklyn Park, MN, 55428 1514
USA
TL4100 and TL4105 Series Tact Switch Offers Unique Board Edge Mounting!
MINNEAPOLIS, MN --- E-Switch announces the TL4100 and TL4105 series tact switches. Offering a very unique board edge mounting design, an ultra-miniature size, and a long life expectancy, these switches are a perfect fit for handheld devices.
Specifications include:
Life Expectancy: depends on series, up to 1,000,000 cycles
Contact Rating: 50mA @ 12VDC;
Contact Resistance (Initial Max): 100mW (TL4100) and 1W (TL4105)
Insulation Resistance: 100 M£[ min at 500VDC
Dielectric Strength: 250 VAC for 1 minute
Operating Temperature: -40°C to +85°C
Operating Force: varies with series
Travel: 0.15mm - 0.10mm
Function: SPST, Off-(On), Momentary
The TL4100 and TL4105 series tact switches are a great product for the audio/visual, handheld devices, computer peripherals, consumer electronics, instrumentation, medical equipment, and telecommunication markets.
Detailed specifications on the TL4100
Detailed specifications on the TL4105
Visit E-Switch at www.e-switch.com to request your full-line catalog! You can also request a sample of one of over 4,000 discrete part numbers for one of your projects!
About E-Switch. In 2009, E-Switch, Inc. acquired Lamb Industries and now offers one of the broadest switch lines available today. Both companies have been delivering innovative and quality switches to the electronics, telecom, high tech, instrumentation, industrial, appliance and consumer markets since 1979. Located in Minneapolis, Minnesota, and Portland, Oregon, their global reach extends to Europe, Asia and Latin America. Products include Rocker, Toggle, Slide, Tact, Pushbutton, Dip, Rotary, Keylock, Snap Action, Power, illuminated switches, and more. E-Switch has local reps, distributors, engineers and account managers on hand to provide specifying assistance and quick response to requests, along with a top notch sampling and cross-referencing program. E-Switch¡¦s online catalogs include complete specifications, drawings and schematics.
