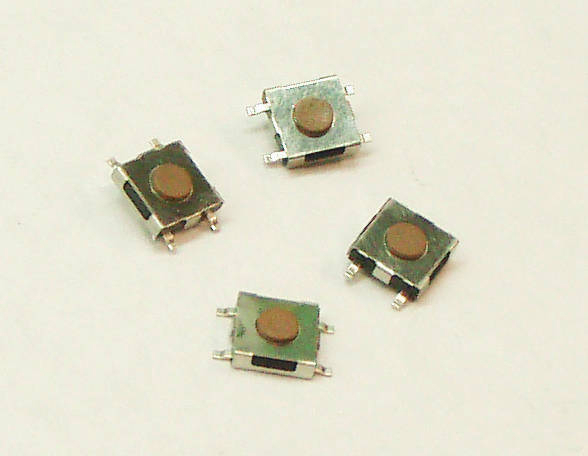

Tact Switch has SMT termination.
December 10, 2008 -
Model TL3313 sub-miniature tact switch provides 100,000 cycles of electrical life and operating force of 100 ± 50 gf, 160 ± 50 gf, and 250 ± 50 gf. It has contact rating of 50 mA at 12 Vdc, 100 mW contact resistance, 100 MW of insulation resistance, dielectric strength of 250 Vac, and operates at -20 to +70°C. Utilizing dome technology, switch suits applications in consumer electronics and medical devices, as well as telecommunications and computer/servers/peripherals.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
E-Switch Inc.
7153 Northland Dr., MS-1197
Brooklyn Park, MN, 55428 1514
USA
E-Switch Announces New Sub-Miniature SMT Tactile Switch
E-SWITCH'S NEW SUBMINIATURE SMT TACTILE SWITCH HAS SMALL FOOTPRINT
MINNEAPOLIS, MN - E-Switch announces the TL3313, a sub-miniature tact switch with a small footprint This subminiature tact switch has SMT termination and high reliability with a mechanical life of 100,000. Its reliable dome technology is perfect for many consumer electronics and medical devices.
Specifications include:
Electrical Life - 100,000 cycles
Operating Force - 100 +/- 50 gf; 160 +/- 50gf; 250 +/- 50 gf
Contact Rating - 50mA @ 12VDC
Contact Resistance - 100 milliohms (initial max)
Insulation Resistance - 100 Megaohms (Min. @ 100VDC)
Dielectric Strength - 250 VAC (1 minute)
Operating Temperature - minus 20C to + 70C
Markets for the TL3313 series subminiature tact switch include consumer electronics, audio/visual, medical, testing and instrumentation, telecommunications, and computer/servers/peripherals, among others.
Visit E-Switch at www.e-switch.com or call us at 800-867-2717 to request your catalog! You can also request a sample of one of over 4,000 discrete part numbers for one of your projects! Little Details. Big Quality.
About E-Switch. E-Switch has been manufacturing quality switches since 1979 for the electronics, telecom, high tech, instrumentation, A/V, appliance and consumer markets. Located in Minneapolis, Minnesota, their global reach extends to Europe, Asia and Latin America. Products include Rocker, Toggle, Slide, Tact, Pushbutton, Dip, Rotary, Keylock, Snap Action, Detector switches, and more. E-Switch has local reps and distributors on hand to provide specifying assistance and quick response to requests, along with a top notch sampling and cross-referencing program. E-Switch's online catalog includes complete specifications, drawings and schematics.
