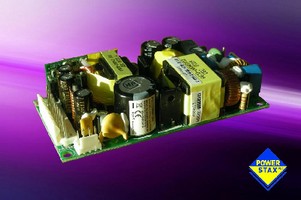

Switching Power Supplies offer 92% efficiency.
November 14, 2008 -
Featuring 4 x 2 in. footprint, 160 W single-output A-01601 Series runs from 170-370 Vdc and provides 5, 12, 24, and 48 V output options with 16 ms holdup time. Power factor corrected units deliver 12.5 W/in.³ with convection cooling and 20 W/in.³ when fan cooled. All models have 12 V auxiliary output for fan/standby purposes. Operating from -20 to +70°C with de-rating, switchers include auto recovery over voltage, over current, short circuit, and over temperature protection.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Powerstax plc
Unit B5, Armstrong Mall
Farnborough, Hants, , GU14 0NR
United Kingdom
160 Watt Power Supply Offers 92% Efficiency with Just 102 x 50mm Footprint
October 2008 - Powerstax plc, market leaders in application rich high efficiency power solutions, announce the availability of the new A-01601 family of 160 watt, industry leading ultra-high power density single output power supplies. The low profile 1U x 102 x 50mm (4" x 2") footprint switchers provide 12.5W/inch³ with convection cooling and 20W/ inch³ fan cooled. Output options include 5V, 12V, 24V and 48V with 3.3V and 15V to be available in the near future. All models have a 12V auxiliary output for fan/standby purposes.
With up to 92% efficiency attainable, these power-factor corrected switching power supplies are suitable for ITE and some medical applications. Tim Worley, CEO of Powerstax plc, comments, "We are now very focused on providing the most efficient power conversion products available for our customers while maintaining our key strength of providing application specific solutions on short lead-times. Our UK based design team provides direct engineer to engineer communication with our customers ensuring accurate and timely product solutions."
The new Powerstax A-01601 series has a universal AC input and will run from 170-370 VDC and provides a 16mS Holdup Time. Auto recovery over voltage, over current, short circuit and over temperature protection is standard and operating temperature range is -20 to + 70 ºC with de-rating. For more than 100 watt output 200 LFM cooling is required. MTBF is >100000 Hours convection cooled and >300,000 hours with cooling. The A-01601 family has VDE, UL, c-UL for EN60950, IEC60950, UL/c-UL 60950 EN60601-1, IEC60601 and UL/c-UL 60601-1 safety standards and meets EMC standards including, conducted EMI EN55022 Class B, EN60601-1-2, EN55022 Class B, Voltage Fluctuation EN61000-3-3, ESD EN61000-4-2 8KV air-discharge, 6KV contact A and Radiated Field EN61000-4-3 3V/m, 80-2500MHz, 1kHz/2Hz 80% AM modulation.
Typical applications include telecoms, datacoms, industrial control, test and measurement and security systems. For more information visit www.powerstaxplc.com, email sales@powerstaxplc.com or call +44 (0)1252 407800
About Powerstax:
POWERSTAX plc specialises in the design, manufacture and marketing of high power density, high efficiency AC-DC and DC-DC power supplies including DC-DC Converters, Configurable, Modular SMPS, plus AC Rectifiers and Bulk Power PSU. In addition Powerstax provides Value Added and complete Custom Power Solutions. Powerstax provides standard and custom AC & DC power solutions for centralised and distributed power (DPA) in a broad range of applications including hot swap front end AC-DC bulk power, DC-DC converter bricks and programmable, modular rack mounted SMPS, for use in Telecoms, Datacoms, IT, Industrial, Test & Control, Transportation, Avionic, Defence, Medical and all commercial markets.
|
|
|
|
|
|
|
|
