Switch-Mode Power Supply offers single or dual outputs.
May 13, 2005 -

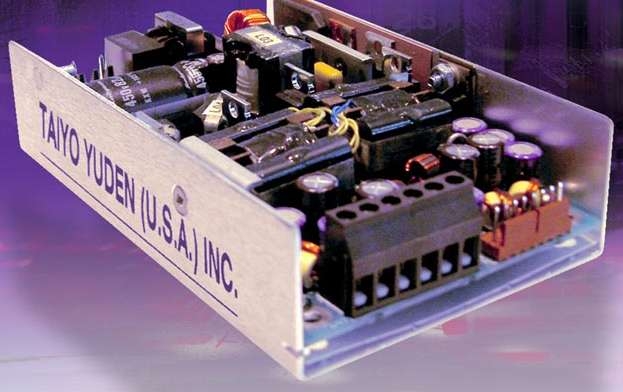

Featuring 1U form factor, 130 W AAD-130SD operates at better than 0.98 power factor and 90% efficiency. It offers outputs in 8 available ranges from 3.3-48 V; dual-output configurations accept any combination of available outputs. Current ratings include 3-32 A for single-output configuration and 1.5-16 A for dual-output model. Product allows current sharing between outputs of similar units, making it suited for parallel or redundant applications.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Taiyo Yuden (USA) Inc. / Power Systems Group
1770 La Costa Meadows Drive
San Marcos, CA, 92069
USA
New High Efficiency 130W Switcher Offers Single or Dual Outputs, High Current Operation, Low Cost, 1U Form Factor
SAN MARCOS, CA-April 26, 2005-TAIYO YUDEN (U.S.A.), INC., announces the AAD-130SD-the latest addition to the company's expanding line of ultra-compact (5.0" L x 3.14" W x 1.25" H), high-efficiency, switch-mode power supplies for data communications, telecom, and other 1U-height applications. Operating at better than 0.98 power factor and 90% efficiency, the AAD-130SD offers users a choice of single (high performance) or dual outputs in eight available ranges from 3.3-48V. Current ratings include 3-32A for the single-output (V1) configuration and 1.5-16A for the dual-output model, per table below. Dual-output (V1 and V2) configurations allow users to mix and match any combination of available outputs, as for example, 3.3V @ 16A for output V1 and 15V @ 5A for output V2.
Output Voltage (V) Output Current (A)
Single Output (V1) Dual Output (V1) Dual Output (V2)
3.3V 32A 16A 16A
5 26 14 14
12 12 6 6
15 9 5 5
24 6 3 3
28 5 2.5 2.5
36 4 2 2
48 3 1.5 1.5
As one of the smallest power supplies on the market (127.0 mm L x 79.8 mm W x 31.8 mm H), the AAD-130SD allows current sharing between outputs of similar units, making the device ideal for parallel / redundant applications. The device's high-efficiency operation allows it to meet stringent EN61000-3-2 harmonic distortion standards, in addition to CISPR 11/22 and FCC level B EMI filtering; and EN61000-4 surge withstand specifications.
Manufactured in TAIYO YUDEN's ISO-9001-certified facilities in North America, the AAD-130SD features quick prototype delivery and Highly Accelerated Life Testing (H.A.L.T.) to ensure compliance with design parameters and 100% out-of-the-box operation.
Price (Each): Starting in the $50s at OEM quantities; consult TAIYO YUDEN
Availability: Now
Delivery: Stock to 8 weeks ARO
For a pdf of the datasheet, go to: http://t-yuden.com/pdfs/powersupplies/swps-aad130sd.pdf
