Surface-Mount LED delivers uniform lighting.

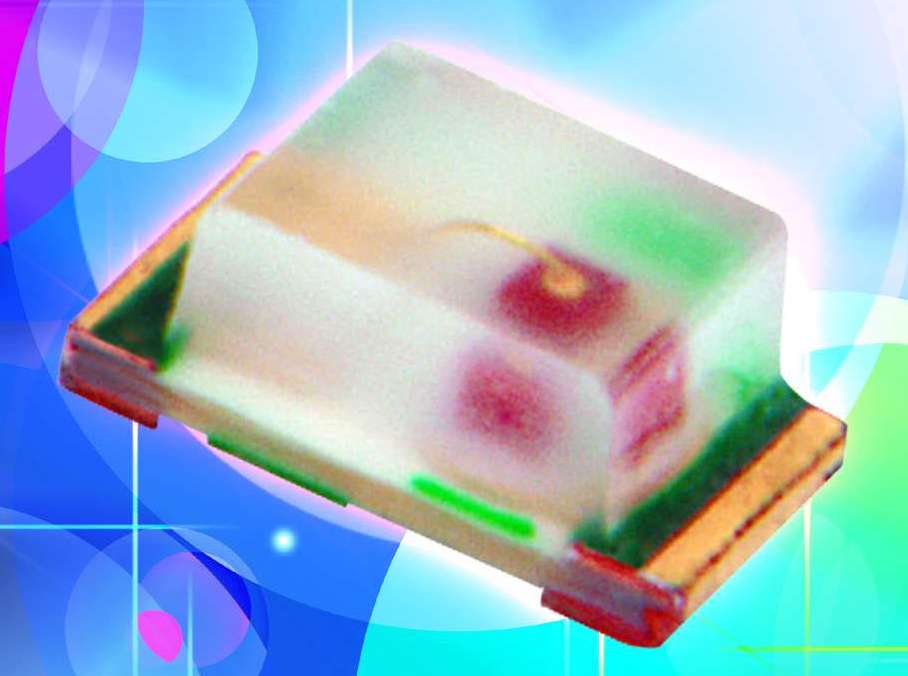

May 23, 2003 - Offered with 140° viewing angle and wavelength of 647 nm, miniature, surface-mount BR1111C LED measures 1.6 x 0.8 mm for use in high-density designs. Red LED has GaAlAs die and is designed for luminous intensity up to 11.7 mcd in milky-white type lens. Product withstands operating temperatures from –30 to +85°C and has the following operating characteristics: 57.5 mW power dissipation, 25 mA forward current, 60 mA peak forward current, and 4 V reverse voltage.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Stanley Co., Inc.
2660 Barranca Pkwy.
Irvine, CA, 92606-5029
USA
Wide Angle BR1111C Surface Mount LED Delivers Bright, Uniform Lighting
Ideal For Switches, Key Pads Or Indicators In Appliances,
Automotive, Medical Equipment, Portable Devices and More
Irvine, CA – May 15, 2003 – Designed with a wide 140-degree viewing angle and a dominant wavelength of 647 nm, the miniature surface mount BR1111C LED from Stanley Electric is an excellent lighting source for a wide range of electronic devices.
With a footprint measuring only 1.6-x-0.8 mm in an industry standard 1608 (0603) package, the tiny BR111C LED fits in tight spaces to accommodate high density designs. It is suitable for applications in appliances, automotive aftermarket accessories, medical devices, cell phones, pagers, PDAs, industrial instrumentation and more.
The BR111C LED is brilliant red, featuring a GaAlAs die and offers a wide, uniform spatial distribution. It is designed for a luminous intensity of up to 11.7 mcd (If=20mA) in a milky-white type lens. It is also an excellent choice for backlighting applications, including LCDs.
Designed for variable operating environments, the BR111C LED withstands operating temperatures that range from –30°C to +85°C. Other key specifications include: 57.5 mW power dissipation, 25 mA forward current, 60 mA peak forward current, and 4 V reverse voltage. Derating is from 0.36 (DC) 0.86 (pulse) mA/°C.
The BR1111C LED is compatible with today’s automated assembly and soldering techniques. It comes in tape-and-reel packaging suitable for high-speed pick-and-place equipment. Both reflow and dip soldering equipment can be used with the BR1111C LED.
The BR1111C LED is priced at $0.081 each in quantities of 100 pieces or less. The 1111C LED Series also is available in other colors that include: orange, yellow, yellow-green, green and pure green. For information about other colors or samples, contact your local Stanley representative or distributor.
Stanley Electric Sales of America, Inc., is the U.S. subsidiary of the Stanley Electric Company, a worldwide manufacturer of optoelectronic products serving the consumer, electronics, automotive, computer, and communications markets with annual sales of $1.6 billion. The company specializes in cutting-edge optoelectronic research, pursuing the next generation of lighting and display technology for tomorrow’s needs.
Company Info: Stanley Electric Sales of America, 2660 Barranca Parkway, Irvine, CA 92606; Tel: 1-800-533-5231 Fax: 949-222-0555 URL: www.stanley-electric.com |
|
|
|
|
|
|
|
