Sump Pump suits harsh industrial/offshore environments.
February 24, 2004 - Modular Neptune Piston Sump Pump™ consists of positive displacement piston jack pump and pneumatic drive motor. Active recovery process draws product from specified depth, at specified rate and can be set at 0–11 gpm flow range. Constructed of stainless steel, pump provides wear resistance and constant pumping speeds. At 100 psig, it pumps up to 5 gpm water at 625 ft of total dynamic head or generates up to 1,400 psig.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Blackhawk Environmental Co.
21W 159 Hill Ave.
Glen Ellyn, IL, 60137
USA
Blackhawk Environmental Introduces NEW Neptune Piston Sump Pumpâ„¢
Piston Pump Designed Specially for Harsh and Aggressive Industrial and Offshore Environments

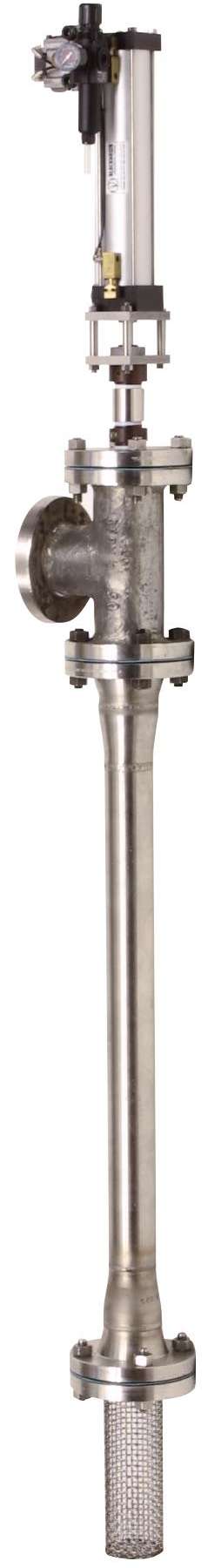

Glen Ellyn, IL – BLACKHAWK ENVIRONMENTAL COMPANY, the leading manufacturer of top head drive positive displacement piston pumps, introduces their latest pump, the Neptune Piston Sump Pump. The Neptune Piston Sump Pump, a high performance positive displacement piston jack pump, is specially designed to pump hot, viscous, oily liquids from harsh industrial and offshore environments. With shallow or deep recovery capabilities, the lightweight Neptune Piston Sump Pump uses an active recovery process that draws product from a specified depth, at a specified rate and can be set at 0 to 11 US GPM (0-41.6 LPM) flow range.
The Neptune Piston Sump Pump features a pneumatic drive motor that is mechanically driven from the surface. Constructed of high-grade stainless steel, the Neptune Piston Sump Pump operates effectively in aggressive industrial and offshore environments and features high efficiency, superior wear resistance, and constant pumping speeds. The Neptune Piston pumps fluids down to the bottom of the piston pump inlet with steady controlled flow rates.
The Neptune Piston Sump Pump’s unique modular design, with motor components separate from the drive piston and cylinder, makes it easy to install, repair and service.
The Neptune Piston Sump Pump can be installed vertically, horizontally or anywhere in between. The Neptune Piston Sump Pump’s mechanical driver produces a high efficiency flow rate. At 100-psig (0.7 MPa) -air pressure, it can pump 5-GPM (18.9 LPM) water at 625’ (190.5m) of total dynamic head or generate up to 1,400 psig (9.7 MPa). The Neptune Piston Sump Pump can be placed in situations where high total dynamic head or high backpressure conditions exist.
Blackhawk Environmental Co. provides piston-pumping solutions for petrochemical, and refinery applications. Blackhawk specializes in manufacturing quality piston pumps and controls for demanding pumping applications. Blackhawk pumps can be powered pneumatically or electrically and can work in hazardous or potentially hazardous environments.
For more information, please contact BLACKHAWK ENVIRONMENTAL COMPANY, 21W161 Hill Avenue, Glen Ellyn, IL 60137. Phone: 630.469.4916. Fax: 630.469.4896. Or e-mail:info@blackhawkco.com www.blackhawkco.com
|
|
|
|
|
|
|
|
