Stud Welding System suits robotic production lines.
August 28, 2002 - KSE100 servo-operated weld gun provides precise gun shaft positioning, closed-loop stud feeding, pulse welding, and simplified maintenance. It handles auto feed stud types from 3 to 8 mm shank dia. Position feedback system and servo electric drive controls arc length, lift and plunge velocity, and depth penetration of each stud weld. Programmable pulse welding mode produces square-wave that alternates between two weld current amplitudes for welding aluminum studs.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Nelson Stud Welding
7900 West Ridge Rd.
Elyria, OH, 44036 2019
USA

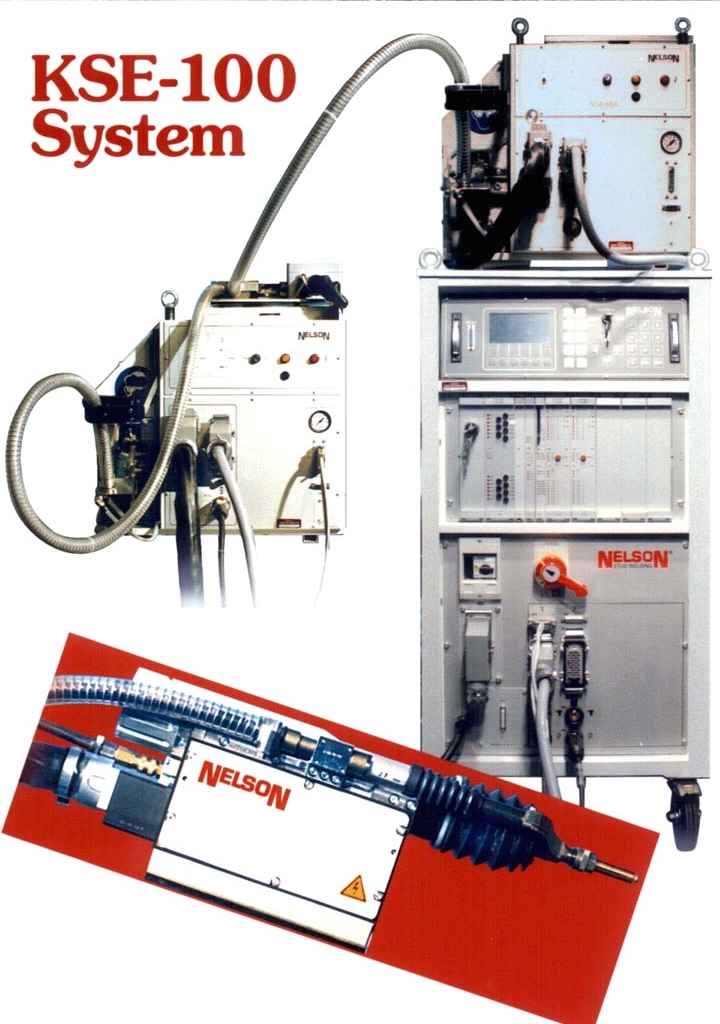

Nelson® Servo-Electric Stud Welding System
The Nelson KSE100 system incorporates multiple patented features. It eliminates the need for a stop pin, resulting in increased application and speed, improved access to tight weld locations, better weld reliability and more accurate stud placement.
A position feedback system and patented servo electric drive in the weld gun precisely controls arc length, lift and plunge velocity, and depth penetration of each stud weld. The KSE100 servo-operated weld gun is designed for all common auto feed stud types from 3mm to 8mm shank diameters. Set-up and maintenance are simplified with the elimination of the standoff pin and the reduction in the number of weld gun components.
The KSE100 system also features a fully programmable pulse-welding mode to enhance welding of aluminum studs. This pulse-welding mode produces a square-wave that alternates between two weld current amplitudes.
The system is recommended for high speed robotic, automotive and industrial production line applications and also offers reduced set-up time, precise gun shaft positioning, closed-loop stud feeding, pulse welding mode, and simplified maintenance.
Nelson Stud Welding, Inc.
P.O. Box 4019
7900 West Ridge Road
Elyria, OH 44036-2019
E-Mail: Nelson.Sales@NelsonStud.com
www.NelsonStudWelding.com
|
|
|
|
