Sterile AODD Pumps meet needs of pharmaceutical applications.
December 27, 2011 -
Offered in B20, B32, and B40 sizes with 15, 34, and 70 gpm max capacities at 100 psi max discharge pressure, BIOCOR Series is EHEDG-certified and conforms to ATEX regulations of 94/9/EG directive. There are no horizontal areas where product can get trapped, and step-less flow control is provided without mechanical control units. Sizes B20 and B32 feature 4 ball-lifting magnets attached to pump housing at location of 4 ball valves, ensuring pump drains completely without dismounting.
Original Press release
ALMATEC Maschinenbau GmbH
Carl-Friedrich-Gauß-Straße 5
Kamp-Lintfort, ,
Germany

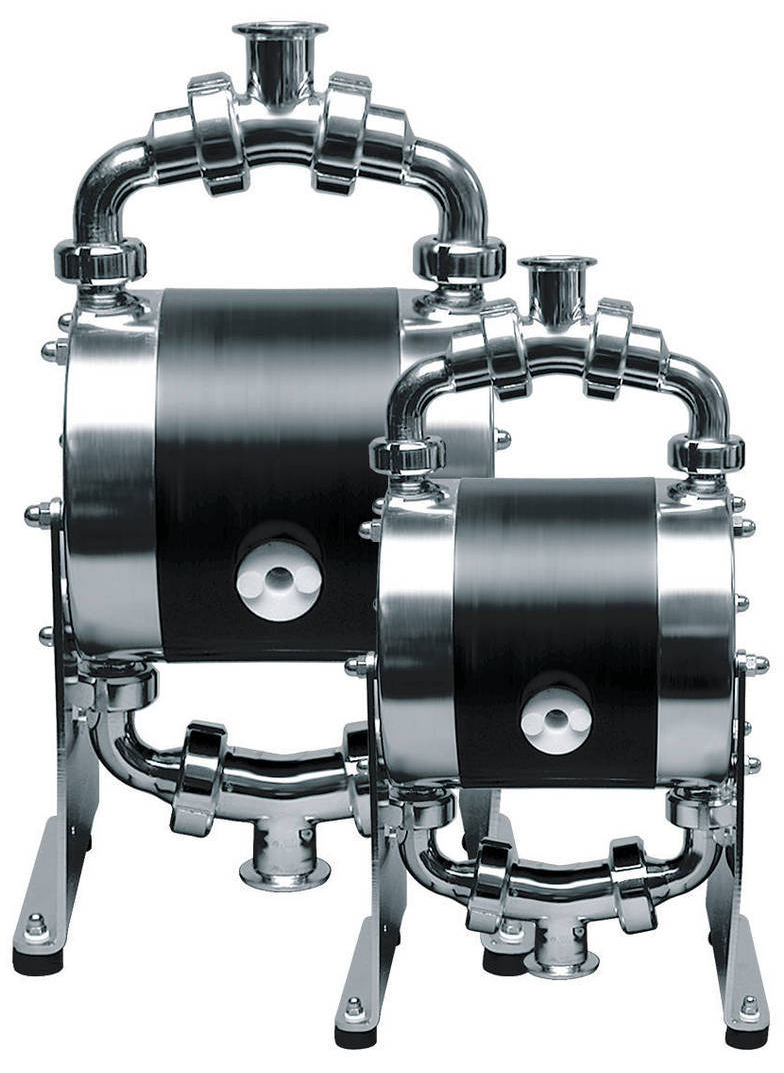

Almatec® BIOCOR Series AODD Pumps Provide Sterile, Superior Performance in Pharmaceutical Applications
Kamp-Lintfort, Germany - Almatec®, a premier manufacturer of air-operated double-diaphragm (AODD) pumps, announced that its line of BIOCOR Series of AODD Pumps feature a wide array of design features that help make them ideal for use in pharmaceutical applications that require the highest level of sterile operation.
Available in three sizes-B20, B32 and B40-with maximum capacities of 15, 34 and 70 gpm at a maximum discharge pressure of 100 psi, BIOCOR Series pumps are EHEDG certified and conform to ATEX regulations that are laid out in the 94/9/EG directive. Helping the BIOCOR pumps meet these strict sanitary requirements is a design that features no horizontal areas where product can get trapped. Additionally, the sizes B20 and B32 are equipped with four ball-lifting magnets that are attached to the pump housing at the location of the four ball valves. This method of construction and operation ensures that the pump is drained completely without having to be dismounted, which enables clean-in-place (CIP) and sanitize-in-place (SIP) capability while eliminating the need for mechanical ball-lifters that would be located in the wetted area.
BIOCOR pumps also feature step-less flow control via air pressure and volume without complex mechanical control units, which prevents overpressure while ensuring maximized output and efficiency. The material for the wetted housing parts is electro-polished 316L (Basel Standard II, ferrite content < 1%) stainless steel with a center block of PE conductive, while the diaphragms, ball valves and O-rings are made of PTFE or EPDM.
Finally, BIOCOR Series pumps are also equipped with the patented PERSWING P® air control system. This metal-free, pneumatically pilot-operated control system ensures accurate reversal of the main piston and is characterized by low noise level. It does not require maintenance, operates without any lubrication and is made up of no more than four different parts.
For more information on Almatec® BIOCOR Series pumps, please go to www.almatec.de. Almatec is an operating company within Dover Corporation's Pump Solutions Group (PSG®). For more information on PSG, please go to www.pumpsg.com.
Almatec Maschinenbau GmbH is one of the world's leading manufacturers of pneumatic diaphragm pumps. Today, Almatec owns numerous patents and has one of the largest ranges in the field of pneumatic diaphragm pumps. Almatec-headquartered in Kamp-Lintfort, Germany-is a member of Dover Corporation's Pump Solutions Group (PSG®).
|
|
|
|
|
|
|
|
