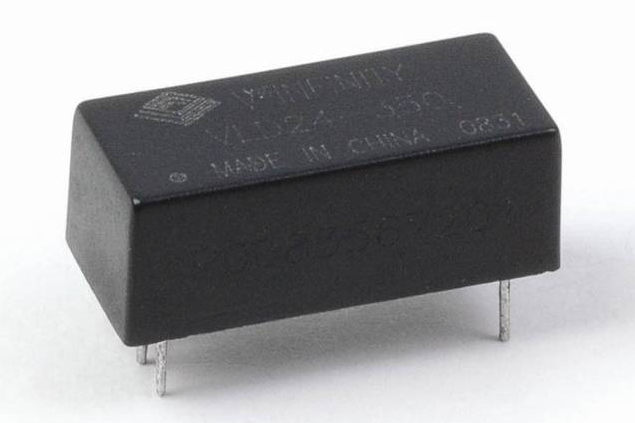

Step-Down DC-DC Converter drives high power LEDs.
May 12, 2009 -
Series VLD24 operates from 5.5-36 Vdc input and offers both PWM digital dimming and analog dimming control via trim POT. Available output currents include 300, 350, 500, 600, and 700 mA with output voltage range of 2-32 Vdc. Ambient operating temperature range is -40 to +85°C at full load in 300 and 350 mA versions and -40 to +71°C in 500, 600, and 700 mA versions. Measuring 0.897 x 0.401 x 0.374 in. in PCB mount package, product has short-circuit protection and on/off control.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
V-Infinity
9615 SW Allen Blvd., Suite 103
Beaverton, OR, 97005
USA
High Efficiency Converter Is Ideal for Driving High Power LEDs
Tualatin, OR
V-Infinity, a division of CUI Inc, announces a new line of step-down constant current dc-dc converters that have been designed for driving high power LEDs. The VLD24 series has efficiency levels of up to 95% and a wide input range of 5.5 to 36 Vdc. The series has two means of LED dimming: PWM digital dimming and analog dimming control via a trim POT. The VLD24 is ideal for a wide range of LED applications where precise accuracy and brightness control is needed, including signage, transport, consumer electronics, and signaling.
Available output currents include 300, 350, 500, 600, and 700 mA with an output voltage range of 2 to 32 Vdc. The VLD24 series has an ambient operating temperature range of -40°C to +85°C at full load in the 300 mA and 350 mA versions and -40°C to +71°C in the 500 mA, 600 mA, and 700 mA versions. Short-circuit protection and on/off control are standard features. This series is compact, measuring 0.897 x 0.401 x 0.374 inches in a pcb mount package. The VLD24 series is available immediately through Digi-Key with prices starting at $10.50 per unit. For quantities over 500 pieces, please contact CUI directly for OEM pricing.
Summary:
o Product name: VLD24 series
o Availability: 5 weeks production
o Possible users: LED applications where precise accuracy and brightness control is needed
o Primary features: high efficiency, constant current
o Cost: $10.50 per unit through Digi-Key
