Steering Wheel System measures data in test applications.
December 2, 2009 -

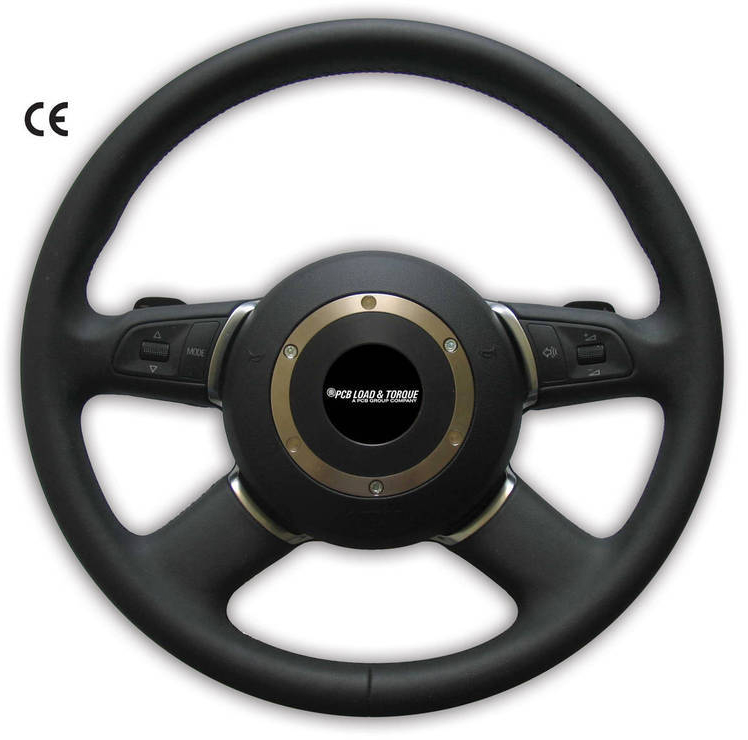

Instrumented Steering Wheel System, Model 5610-10A, enables true-to-life data measurements in automotive ride and handling tests. With supplied adaptors, telemetry-based system installs in same position as OEM steering wheel for similar ergonomics and driving dynamics. Sensors measure angle, angular rate, and torque, while function keys include autozero for steering angle and steering torque; shunt calibration; and function lock. Vehicle's active ESP is fully supported and not compromised.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
PCB Piezotronics Inc.
3425 Walden Ave.
Depew, NY, 14043 2495
PCB Automotive Sensors Introduces their New Instrumented Steering Wheel System
For Automotive Ride and Handling Test Applications
Novi, Michigan, USA - PCB Automotive Sensors, a division of PCB Piezotronics, introduces their new Instrumented Steering Wheel System, Model 5610-10A, for vehicles that enables true-to-life data measurements. The telemetry-based steering wheel with supplied adaptors can be installed in the same position as the OEM steering wheel to provide similar ergonomic feel and driving dynamics. The unit is equipped with integrated sensors to measure angle, angular rate, and torque. The vehicle's active Electronic Stability Program (ESP) is fully supported and not compromised. PCB® Model 5610-10A units provide advanced integrated function keys, which include autozero for both steering angle and steering torque, shunt calibration, and function lock. The four integral switches located on the steering wheel within thumbs reach allow the unit user-programmable controlling options. Equipped with an integrated inductive power supply, Model 5610-10A Instrumented Steering Wheel Systems provide continuous running wireless operation.
The accompanying compact signal conditioning unit is designed for use where space is at a premium. Measured signals are retrieved directly from the signal conditioner via electrically isolated connectors. An optional CAN interface, for integration with data acquisition systems, or a USB interface used with computers, are available for further data recording and analysis.
PCB Automotive Sensors is a dedicated technical sales and support group, located in Novi, Michigan, USA, devoted to the testing needs of the global transportation market. This team is focused on development and application of sensors and related instrumentation for specific vehicle development test programs, including modal analysis; driveability; ride & handling; component & system performance; durability; road load data acquisition, vehicle and powertrain NVH; legislative testing; quality control; powertrain development; and motorsport. For more information about PCB Automotive Sensors, visit www.pcb.com/auto.
PCB Piezotronics, Inc. is a global leader in the design and manufacture of force, torque, load, strain, pressure, acoustic and vibration sensors, as well as the pioneer of ICP® technology. This instrumentation is used for test, measurement, monitoring, and feedback control requirements in automotive, aerospace, industrial, R&D, military, educational, commercial, and OEM applications. The PCB® team of Design, Engineering, Sales, and Customer Service individuals, draw upon vast in-house manufacturing resources to continually provide new, more beneficial sensing solutions. From ready-to-ship stock products, to custom-made specials, PCB® proudly stands behind all products with services customers value most, including our 24-hour customer support, strategic global distribution network, and industry-exclusive Lifetime Warranty Plus and Best Price Guarantee. For more information about PCB visit www.pcb.com.
PCB is a registered trademark of PCB Group, Inc
