Static Mixing Systems feature skid-mounted design.
March 17, 2009 -
Available in various materials of construction and up to 48 in. in diameter, LPD Mixing Systems are suited for low viscosity turbulent flow mixing of fluids and for gas-liquid mixing. ISG Mixing Systems, supplied in cast or machined materials for applications through 12 in. dia, include machined elements with passageways that guarantee mixing of any pumpable material. After passing through 10 elements, systems layer materials over 2,000,000 times to provide microscopically layered mixture.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Ross, Charles, & Son Co.
712 Old Willets Path
Hauppauge, NY, 11788 0615
USA

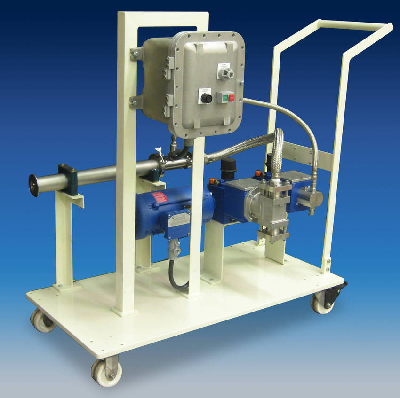

Ross Introduces Skid Mounted Static Mixing Systems
Charles Ross & Son Company, the leader in specialty mixing and dispersion equipment, is now offering complete skid mounted static mixing systems.
The systems are designed to meet the needs of each user and typically include:
o Portable skids on caster wheels
o LPD or ISG Static Mixers
o Pumps to suit
o Materials of construction to suit individual process needs
o Controls including on-off pushbuttons, flow meters, variable speed and ratio controls
The available mixer designs include the LPD, a low-pressure model typically used for low viscosity turbulent flow mixing of fluids and for gas-liquid mixing. This design is offered in many materials of construction and to 48 inches diameter. These mixers are easily customized to include special feed nozzles and injectors for major and minor product streams.
The second design, the ISG is includes specially machined elements with passageways that guarantee the mixing of any pumpable material. After passing through ten elements the ISG will layer materials over 2,000,000 times to provide a microscopically layered mixture. ISG elements are stackable in any quantity to provide mixing quality as needed in the process. The ISG is supplied in a range of cast or machined materials to suit the application through 12 inches diameter.
Additional information on Ross Static Mixing systems can be obtained by contacting
Shannon Wolf - Product Manager @ swolf@mixers.com or by calling our toll free number
1-866-797-2660
|
|
|
|
