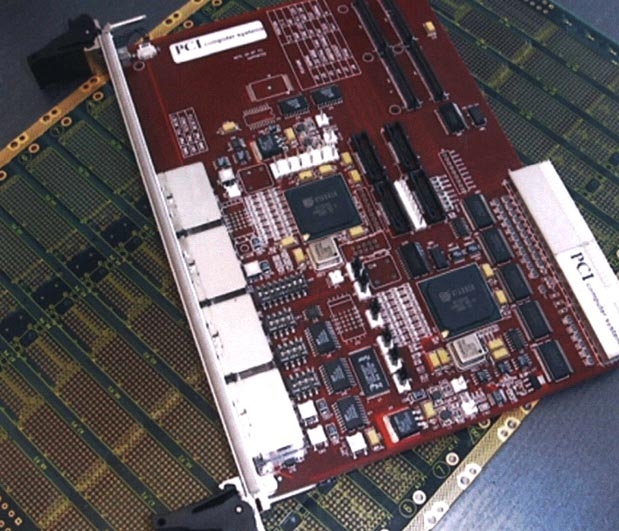

Starfabric Bridge Board plugs into CompactPCI system.
July 15, 2002 - PCI-2010-CPCI64 64 bit board has two SG2010 PCI-to-StarFabric bridge devices and two 2.5 Gbps full-duplex StarFabric serial links available via RJ45 connectors. Both bridge devices are PCI Rev. 2.2 compliant; one is 64 bit, 66 MHz CPCI connected and other is 64 bit, 33 MHz PMC site connected. Applications include evaluation and development of SG2010 operations, application specific code for StarFabric compatible devices, and onboard 64 bit PMC site.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
PCI Automation Inc
2600 Strawberry Court
Antioch, CA, 94509
USA
PCI AUTOMATION INC. Introduces Starfabric Bridge Board
Antioch, CA. , Dietzenbach, Germany -July 02, 2002 -- PCI automation Inc. Has released a Starfabric compatible CompactPCI board with add on PMC site.
The PCI-2010-CPCI64 is a 64-bit CompactPCI form-factor board that uses the SG2010 PCI-to-StarFabric device and can be used for the following purposes:
- Evaluation of the SG2010 operation and features
- Evaluation and development of application specific code for the SG2010 and other Starfabric compatible devices
- Evaluation and development of application specific code for use with the onboard 64-bit PMC site.
- StarFabric system design
- Use as a node card in a PICMG 2.17 application
Main Features
The SG201O-CPCI64 evaluation board has the following features:
- Two (2) SG2010 PCI-to-StarFabric bridge devices
- Both bridge devices are PCI Rev. 2.2 compliant; one is 64bit, 66MHz CPCI connected and the other is 64-bit, 33MHz PMC site connected
- Two (2) 2.5Gbps full-duplex StarFabric serial links available through standard RJ45 connectors available from each SG2010 (build option as to whether links are routed to backplane or RJ45 connectors)
- Eight (8) LVDS serial link status LEDs for each SG2010
- Register configuration pre-load serial ROM for each SG2010
- Configuration DIP switches and jumpers
- JTAG access header
PCI automation Inc. develops and manufactures intelligent CPU and peripheral boards in the US and Germany for many platforms that provide precision control of robotic and automated equipment in the semiconductor, medical, telecom and industrial equipment markets as well as for ruggedized embedded OEM applications.
For more information contact sales@pcisystems.com or visit the website at:www.pcisystems.com
©Copyright PCI automation Inc., 2002. All rights reserved.
|
|
|
|
|
|
|
|
|
|
|
