Stamped Spring Pin Socket enables UART testing to 5 Mbps @ 1.8 V.
August 26, 2010 -
Designed for testing 7 x 7 mm QFN packages with 0.5 mm pitch, 48 positions, and center ground pad, CBT-QFN-7002 addresses requirements for testing UART serial to parallel data converter. Contactor consists of stamped spring pin with 26 g actuation force per ball and cycle life of 500,000 insertions; self inductance is 0.88 nH, insertion loss is less than 1 dB at 15.7 GHz, and capacitance is 0.097 pF. Features include low-profile snap lid and wave spring with swivel compression plate.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Ironwood Electronics, Inc.
P.O. Box 21151
St. Paul, MN, 55121
USA
Socket and Test your NXP's SC16C852V Universal Asynchronous Receiver and Transmitter HVQFN48 up to 5Mbit/s at 1.8V

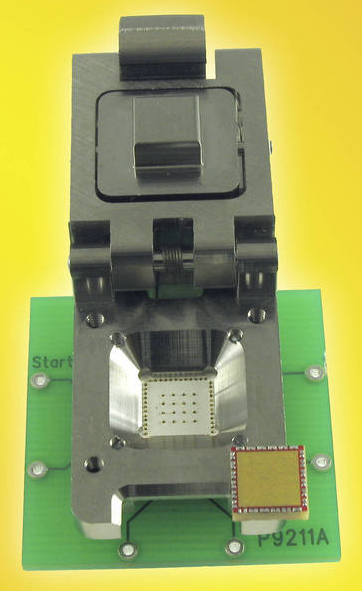

BURNSVILLE, MN - Ironwood Electronics recently introduced a new stamped spring pin socket addressing high performance requirements for testing UART serial to parallel data convertor - CBT-QFN-7002. The contactor is a stamped spring pin with 26 gram actuation force per ball and cycle life of 500,000 insertions. The self inductance of the contactor is 0.88 nH, insertion loss < 1 dB at 15.7 GHz and capacitance 0.097pF. The current capacity of each contactor is 4 amps at 80C temperature rise. Socket temperature range is -55C to +180C. Socket also features a low profile snap lid for ease of operation. It also has a wave spring with swivel compression plate for vertical force without distorting device position.
The specific configuration of the package to be tested in the CBT-QFN-7002 is a QFN, 7x7mm, 0.5mm pitch, 48 positions with center ground pad. The socket is mounted using supplied hardware on the target PCB with no soldering, and uses the smallest footprint in the industry. The smallest footprint allows inductors, resistors and decoupling capacitors to be placed very close to the device for impedance tuning. To use, place QFN device into the socket and close the lid by snapping to the latch. This socket can be used for quick device screening and data conversion functional test applications with the most stringent requirements.
Pricing for the CBT-QFN-7002 is $594 at qty 1 with reduced pricing available depending on quantity required.
For a high resolution photo see: http://www.ironwoodelectronics.com/pr...
|
|
|
|
|
|
|
|
|
|
|
