Stainless Steel Linear Actuator suits food-grade applications.
August 24, 2012 -
Available in models with 16 or 25 mm shaft diameter and various coil windings, IP69K-rated Hygienic Green Drive has FDA food grade certified guides and built-in feedback electronics. Motion control product, suited for harsh and washdown environments, offers rated forces from 8.4-96.1 N, acceleration (peak) forces from 33.7-384.5 N for 40 sec, and currents from 0.53-1.85 A. It supports integration within food grade and pharmaceutical applications as well as cleanroom environments.
Original Press release
Nippon Pulse America, Inc.
4 Corporate Drive
Radford, VA, 24141
USA

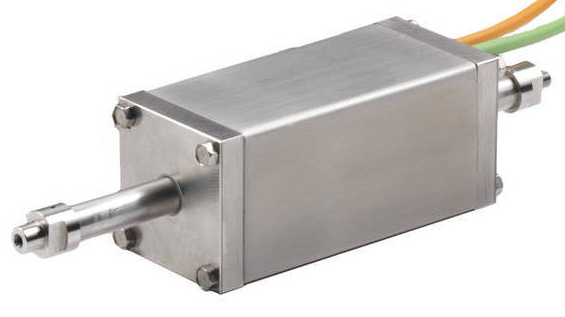

Hygienic Green Drive Linear Actuator for Food-Grade Applications
New to Nippon Pulse's motion control product family is the Hygienic Green Drive, a stainless steel linear actuator suitable for integration into food grade and pharmaceutical applications as well as applications in cleanroom environments.
The Hygienic Green Drive has an IP69K rating and is ideal for harsh and washdown environments. It features FDA food grade certified guides. Like the standard Green Drive, the Hygienic Green Drive offers built-in feedback electronics, including position sensors, interpolation electronics, and temperature sensors.
The Hygienic Green Drive is available in two different model sizes, a 16mm shaft diameter and a 25mm shaft diameter.
Available with a variety of coil windings, the Hygienic Green Drive features rated forces between 8.4 and 96.1N, acceleration forces (peak force) ranging from 33.7 and 384.5N for 40 seconds, and rated currents between 0.53 and 1.85A.
The Hygienic Green Drive linear actuator is designed around Nippon Pulse's Linear Shaft Motor, which is the first linear motor designed for the ultra-high-precision market.
Nippon Pulse America, Inc. is a fully-owned American subsidiary of Nippon Pulse Motor Co., Ltd. of Tokyo, Japan. Nippon Pulse offers various controllers (boards and chips), drivers (boards and chips), and motors (tin-can, hybrid, and linear servo) that cover a wide range of motion control applications. For more information on the Hygienic Green Drive or other Nippon Pulse products, please visit www.nipponpulse.com or call 1-540-633-1677.
|
|
|
|
|
|
|
|
