Stainless Steel Flow Meter accommodates aggressive media.
February 16, 2009 -
Model DS25 Flow Meter works on variable area principal, utilizing float guided in cylindrical measuring tube by means of slotted nozzle. Externally mounted pointer indicator magnetically coupled to float indicates flow rate against calibrated or arbitrary scale. Indicator assembly also houses optional alarm outputs, analog output, and totalizer. Available pipe sizes range from ½-6 in., with FS ranges from 0.01-440 gpm water and 0.44-1,100 scfm air.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
PKP Process Instruments, Inc.,
10 Brent Drive,
Hudson, MA, 01748
USA

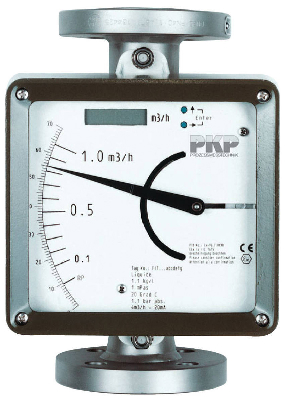

Model DS25 Stainless Flow Meter, Alarm, Transmitter and Totalizer is Suitable for Aggressive Media
Hudson, MA 12/9/2008- PKP Process Instruments, A manufacturer and distributor of a wide range of process instrumentation is pleased to introduce model DS25 Flow Meter.
Due to 316 stainless steel construction, model DS25 is suitable for measuring and monitoring the flow of many liquids or gases. They are suitable for aggressive media and for use in food and drink applications. They can be provided with Tri-Clamp or other hygienic connections.
The DS25 works on the variable area principal and utilizes a float that is guided in a cylindrical measuring tube by means of a slotted nozzle. The flowing medium moves the float in the flow direction. An externally mounted pointer indicator magnetically coupled to the float indicates flow rate against a calibrated or arbitrary scale. The indicator assembly also houses optional alarm outputs, analog output and totalizer.
The DS25 supplied with 316 stainless steel wetted parts that can be optionally PTFE coated for aggressive media applications. Available pipe sizes are ½, ¾, 1, 1-1/4, 1 1/2, 2, 3, 4 and 6 inch with full scale ranges from 0.01 GPM water to 440 GPM water and 0.44 SCFM air to 1100 SCFM air. Pressure rating is typically 580 or 1450 PSIG with higher-pressure ratings available. Options include analog and alarm outputs, explosion proof model, oxygen cleaning, steam jacketing for temperature control and temperature isolation of electronics for high temperature applications.
About PKP Process Instruments:
PKP Process Instruments is located in Hudson, MA. Its mission is to serve as the North American sales office and distribution warehouse for PKP Prozessmesstechnik products, Wiesbaden, Germany. PKP products are recognized worldwide for their process grade functionality and have an extensive record of excellent performance and quality.
Additional PKP flow, pressure, level and temperature products stand out with unique measurement and function capabilities.
For a complete view of the PKP Process Instrument product line and to make contact with our technical sales staff please see our web site (http://www.pkp.eu/) or give us a call at: PKP Process Instruments, Inc., 10 Brent Drive, Hudson, MA, U.S.A., Tel: 978-212-0006, Fax: 978-568-0060
|
|
|
|
|
|
|
|
