Socket holds 1,156-pin, 1 mm pitch BGA packages.
March 27, 2009 -
Designed for 35 x 35 mm package size, SG-BGA-6230 socket operates at bandwidths up to 8 GHz with less than 1 dB of insertion loss. Sockets can dissipate up to several watts without extra heat sinking and can handle up to 100 W with custom heat sink, and connects all pins with 10 GHz bandwidth on all connections. Socket mounts to target PCB with no soldering and operates in temperatures from -40 to +100°C. It is manufactured with high-performance/low-inductance elastomer contactor.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Ironwood Electronics, Inc.
P.O. Box 21151
St. Paul, MN, 55121
USA
8 GHz Bandwidth Socket for 1156 pin, 1mm Pitch BGA Packages
Quickly and easily Socket your 1156 pin BGA packages on any PCB without significant performance loss

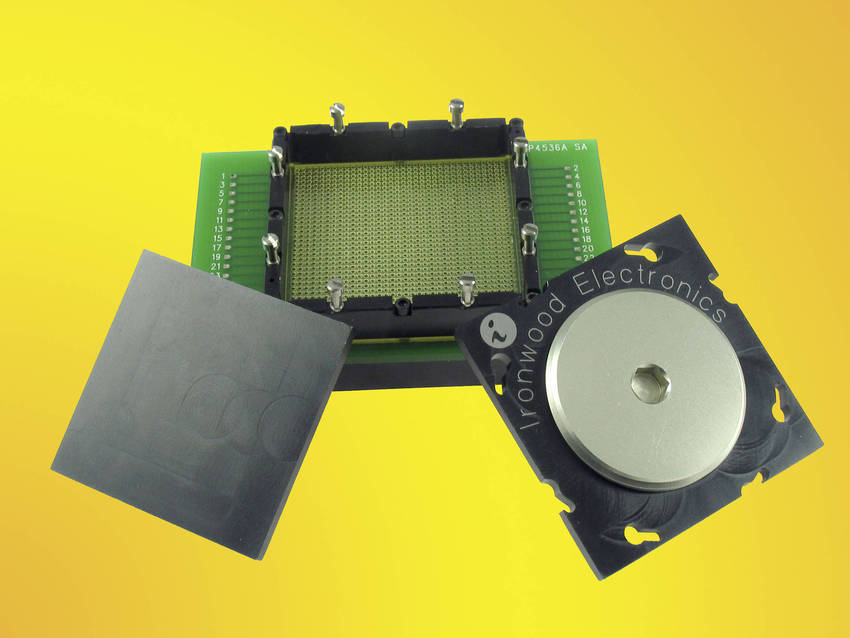

BURNSVILLE, MN - March, 2009 - Ironwood Electronics has recently introduced a new high performance BGA socket for 1.0mm pitch BGA 1156 pin IC's. The SG-BGA-6230 socket is designed for an 35X35 mm package size and operates at bandwidths up to 8 GHz with less than 1dB of insertion loss. The sockets are designed to dissipate up to several watts without extra heat sinking and can handle up to 100 watts with custom heat sink. The contact resistance is typically 20 milliohms per pin. The socket connects all pins with 10 GHz bandwidth on all connections. The socket is mounted on the target PCB with no soldering, and minimal footprint. The socket is constructed to take the smallest board space possible and incorporates a new quick insertion method so that IC's can be changed out quickly.
The SG-BGA-6230 socket is constructed with high performance and low inductance elastomer contactor. The temperature range is -40 C to +100 C. The pin self inductance is 0.11 nH and mutual inductance of 0.028 nH. Capacitance to ground is 0.028 pF. Current capacity is 5 amps per pin. Works with IC's such as ISSP90 1156 pin IC, 35X35mm with 34X34 array.
Pricing for the SG-BGA-6230 is $1009 at qty 1; with reduced pricing available depending on quantity required.
