Snap-Action Switches suit power industry applications.
September 14, 2007 -

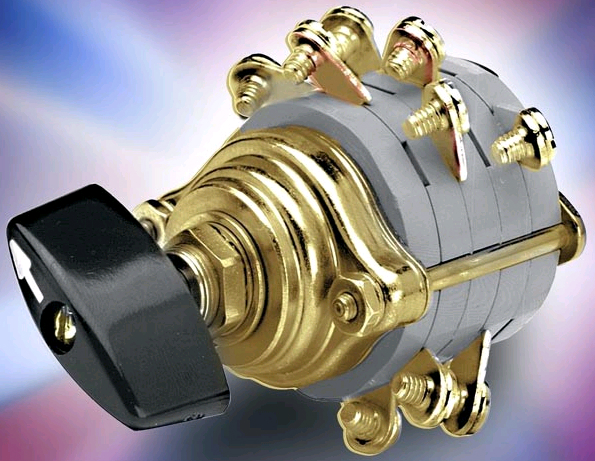

Series 101 Switches feature double-wiping, low-resistance contacts that maintain their set positions inside fully enclosed decks and deliver dc or ac switching. While single-hole mount versions have continuous ratings of 20 A @ 600 V, 4-hole mount versions offer ratings up to 200 A @ 600 Vac. Positive, 90° indexing, snap-action design results in make and break action, with ~10 msec transfer time. Rotation is unlimited and continuous in both directions, unless otherwise specified.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Electroswitch, Unit Of Electro Switch Corp.
180 King Ave.
Weymouth, MA, 02188 2913
USA
Snap-Action Switches Ideal for Power-Industry Applications
WEYMOUTH, MA - Rugged and durable, Series 101 Snap-Action Rotary Switches from Electroswitch are ideal for a variety of power-industry applications. Designed to withstand shock, vibration, and other severe conditions, they feature double-wiping, low-resistance contacts that maintain their set positions inside fully enclosed decks and deliver high-performance DC or AC switching. Available with four-hole or single-hole mounting, they have continuous ratings of 20 amps at 600 volts, but the four-hole model is available with ratings up to 200A@600VAC.
The positive, 90° indexing, snap-action design of Series 101 Switches assures quick make and break action (approximately 10-millisecond transfer time) that is not dependent on the operator. Contacts, which can be either non-shorting (break-before-make) or shorting (make-before-break), are enclosed in molded phenolic insulating disks. To minimize resistance and heating, the stationary contacts extend outside the disks and serve as connecting terminals. Rotation is unlimited and continuous in both directions but can be limited at the factory to two or three customer-specified positions.
Four-hole-mount Series 101 Snap-Action Rotary Switches are available with a choice of seven circuits and can be configured with up to 4 positions, up to 12 poles, and a choice of four handle shapes.
Single-hole-mount Series 101 Snap-Action Rotary Switches are available with a choice of seven circuits and can be configured with up to 4 positions and up to 6 poles.
The insulating materials in Series 101 Switches are rated NEMA Class A (to 105° C). Insulation resistance is 100 Megohms minimum. Approvals for Series 101 Switches include UL File No. E18174 and CSA File No. LR20743. Prices start at $50.00 with delivery beginning @ Stock - 4 weeks ARO.
Electroswitch is the industry leader in the design, manufacture, and marketing of tough, reliable switches, relays, and other electrical systems products for utility, industrial, and military environments. The Electroswitch line of standard products is complemented by the company's proven ability and willingness to modify, custom design, and test their switches and relays for virtually any application. The company takes pride in meeting customer delivery requirements, no matter how stringent.
For more information, contact Mr. William Conklin, National Sales Manager, Electroswitch, 180 King Avenue, Weymouth, MA 02188, TEL: (781) 335-5200, FAX: (781) 335-4253, E-mail: info@electroswitch.com, Web: www.electroswitch.com.
|
|
|
|
|
|
|
|
