Small-Signal Diode features high-temperature design.
June 29, 2011 -

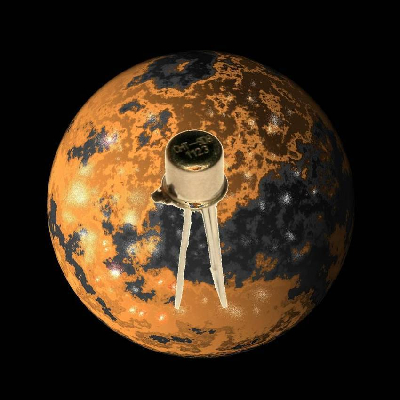

Housed in hermetically sealed metal can TO-18 package, CHT-GANYMEDE includes 2 diodes connected in series that can sustain reverse voltage of 80 V, have max forward current of 300 mA at 225°C, and are suitable for operation from -55 to +225°C. Diodes also feature small junction capacitance of 8.5 pF at 25 V reverse voltage and low leakage current of 8.9 µA at 80 V reverse voltage and 225°C. General-purpose component is suited for clamping as well as low-current rectification and sensing.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Cissoid
Rue Emile Francqui, 3
Mont Saint Guibert, , 1435
Belgium
CISSOID Introduces a High-Temperature 80V Dual Series Small-Signal Diode
Mont-Saint-Guibert, Belgium - CISSOID, the leader in high temperature semiconductor solutions, releases CHT-GANYMEDE, a high-temperature 80V dual series small-signal diode in a small hermetically sealed metal can TO-18 package. This new device includes two diodes connected in series that can sustain a reverse voltage of 80V, have a maximum forward current of 300mA at 225°C and are suitable for operation from -55°C up to +225°C. This dual diode is a general purpose discrete component which and can be used in a variety of applications, including clamping, low-current rectification and sensing, among others.
CHT-GANYMEDE diodes have a very small junction capacitance of 8.5pF at 25V reverse voltage, making them ideal for AC signal rectification, for example in a full-bridge rectifier using two GANYMEDE's. The diodes have a forward voltage of 0.36V for a forward current of 1mA at 225°C. They present a very low leakage current of 8.9µA at 80V reverse voltage and 225°C, making GANYMEDE very suitable for high temperature voltage multipliers (charge-pump). With a forward current of 300mA for a forward voltage of 1.5V at 225°C, GANYMEDE can also be used in voltage clamping applications.
CHT-GANYMEDE data-sheet is available now from CISSOID web site. CHT- GANYMEDE is available in hermetically sealed TO-18 metal can package for sampling and evaluation. Pricing starts at $158.59/unit up to 200 units.
For more information, visit www.cissoid.com or contact the company's representatives at www.cissoid.com/company/about-us/contacts.html.
About Cissoid - www.cissoid.com
CISSOID is the leader in high temperature semiconductor solutions, delivering standard products and custom solutions for power management, power conversion and signal conditioning in extreme temperature and harsh environments. CISSOID provides high reliability products guaranteed from -55°C to +225°C and commonly used outside that range, from cryogenic lows to upper extremes.
Whether the ambient temperature is low but the power dissipation heats up the chips, or in high temperature environments, CISSOID products enable energy, weight and cost savings in lighter, cooling-free and more compact electronic systems. They are used in mission-critical systems as well as in applications requiring long term reliability. CISSOID supplies leaders in the Oil&Gas, Aeronautics, Industrial and Automotive markets.
