Small Screw Insertion System minimizes repetitive motion injury.
September 27, 2010 -

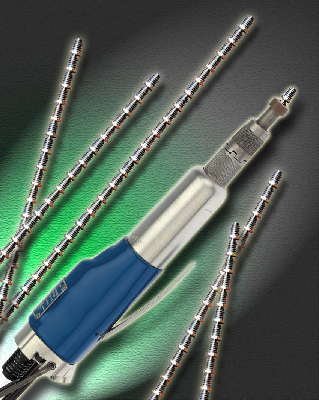

With StickShooter(TM) driver, PEM® StickScrew® System accommodates interchangeable nose assemblies and allows for quick tooling changeover. Self-contained system combines air-powered driver with sticks of serially connected hex head screws, enabling automatic screw installation without handling loose screws or driving them manually. Screws install by inserting stick in driver, advancing stick of screws, squeezing trigger, and placing tip of rotating screw into hole.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
PennEngineering® (Penn Engineering)
P.O. Box 1000
Danboro, PA, 18916
USA
PEM® StickScrew® System Introduces Lower-Cost Tooling with Enhanced Capabilities
ECONOMIC SOLUTION FOR SMALL-SCREW INSERTION:
The PEM® StickScrew® System for small-screw insertion has been re-engineered with a new lower-cost StickShooter(TM) driver offering the capability to accommodate interchangeable nose assemblies and allow for quick tooling changeover. The self-contained system combines the lightweight air-powered driver with "sticks" of serially connected hex head screws enabling automatic screw installation without handling loose screws or driving them manually. The system can serve as a practical alternative to custom-engineered and higher-cost automated screw-driving systems.
Among other benefits, the StickScrew System promotes torque reliability (due to seating torque built into the screw), increased productivity, and safer screw insertion. The system can be up-and-running with minimal operator training.
Dozens of serially connected hex head screws are supplied in "sticks" with lengths of 12". Screws install by inserting the stick in the driver, advancing the stick of screws, squeezing the trigger, and placing the tip of the rotating screw into the hole. The screw is then driven home and twists off cleanly when precise seating torque is achieved.
The standard (in stock) product line includes thread-cutting screws from #2-56 to #6-32 and M3 in 400 series stainless steel. Other available types and sizes include machine screws and thread-forming screws in a variety of materials, including steel, brass, and aluminum, and in thread sizes from #0-80 to #8-32 and M1 to M4. Screws can be plated, black oxidized, hardened, and otherwise customized to meet application requirements.
Detailed specifications (see PEM Bulletin SST) and video of the StickScrew System in action can be found at www.pemnet.com
|
|
|
|
|
|
|
|
