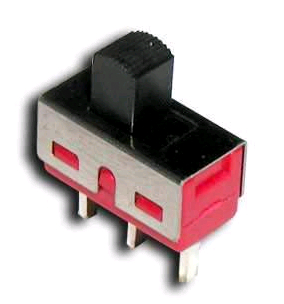

Slide Switches feature RoHS-compliant, subminiature design.
November 8, 2005 -
Available in SPDT and DPDT configurations, 1000 Series Switches offer functions of On-None-On, On-None-(On), and On-Off-On with actuator lengths ranging from 3.60-5.08 mm. Designed with electrical life of 100,000 cycles using gold-plated contacts, switches feature operating temperature of -40 to 80°C and electrical ratings of 5 A at 120 Vac, 28 Vdc and 2 A at 250 Vac. Applications include test and measurement equipment, telecommunications, computers and peripherals.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.
7003 Magda Drive
Maple Grove, MN, 55369
USA
CIT RELAY & SWITCH UL Recognized, RoHS Compliant 1000 Series Sub-miniature Slide Switch
Maple Grove, Minnesota - CIT RELAY & SWITCH introduces the 1000 Series Subminiature Slide switch. This newest addition to the CIT switch line offers both SPDT and DPDT with a variety of actuators and terminals. The 1000 Series offers switch function of On-None-On, On-None-(On), and On-Off-On. Designed with an electrical life of 100,000 cycles using gold plated contact, the 1000 series has an operating temperature ranging from -40°C to 80°C.
The 1000 Series is available with numerous actuator length options from 3.60 mm up to 5.08 mm. Mounting ears and epoxy seal are also offered. Solder lug, PC Pin, Quick Connect, Horizontal Mount Right Angle PC Pin, Vertical Mount Right Angle PC Pin, Panel Mount, and PC Pin with Support Brackets are all available options on the 1000 Series subminiature slide switch.
Overall switch dimensions for the SPDT version are H = 6.35 mm; W = 6.10 mm; L = 17.53 mm. DPDT dimensions are H = 6.35 mm; W = 11.43 mm; L = 17.53 mm. Switch electrical ratings are 5A @ 120VAC, 28VDC; and 2A @ 250VAC. All switches in the 1000 series offer silver plated, gold plated, and gold over silver plated contacts.
Typical applications for the CIT RELAY & SWITCH 1000 series slide include test and measurement equipment, telecommunication, and computer and peripherals. Lead-time averages 5 to 6 weeks. Pricing starts at $0.79 @ 5,000 pieces dependent upon contact arrangement.
CIT RELAY & SWITCH, a division of Circuit Interruption Technology, Inc., manufactures a broad array of automotive, telecom, security, industrial and audio relays and switches in thru-hole, panel, and surface mount styles. CIT RELAY & SWITCH products are supported by a worldwide network of distributors and sales representatives who provide sales, service and delivery. For more information about the new 1000 Series slide switch or any of the CIT switch line, contact CIT RELAY & SWITCH, 7003 Magda Drive, Maple Grove, MN 55369. Phone: 763-535-2339, Fax: 763-535-2194, E-Mail: sales@citrelay.com, Website: www.citrelay.com
|
|
|
|
|
|
|
|
