Single Board Computer provides server-grade performance.
November 18, 2011 -
Powered by Intel® Xeon® E3-1200 processor and Intel® C206 chipset, Model SHB108 features 2 DDR3 1066/1333 MHz unbuffered ECC DIMM slots supporting up to 16 GB. PICMG 1.3 board includes two 6 Gbps SATA and four 3 Gbps SATA ports with RAID 0, 1, 10, 5 function for data security. In addition, SBC supports dual Gigabit LANs for network-intensive applications as well as 14 USB 2.0 ports, optional VGA/DisplayPort, HD audio, 1 RS-232/422/485 port, and 1 RS-232 port.
Original Press release
AXIOMTEK Co., Ltd.
8F , No.4, Lane 235, Pao Chiao Rd.
Taipei, ,
Taiwan

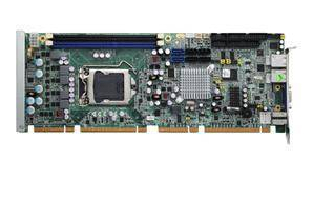

Axiomtek's SHB108 PICMG 1.3 Single Board Computer Designed for Intel® Xeon® Processors E3-1200 Series
Powered by the new-generation Intel® Xeon® E3-1200 series with Intel® C206 chipset , the SHB108 provides server-grade performance without sacrificing cost or reliability
Taipei, Taiwan, - Axiomtek is pleased to announce the arrival of SHB108 PICMG 1.3 single board computer based on the Intel® C206 PCH, designed to support the new Intel® Xeon® processor E3-1200 family using LGA1155 socket. The high performance SHB108 comes with two DDR3 1066/1333 MHz unbuffered ECC DIMM slots up to 16GB of system memory and six SATA ports with RAID 0, 1, 10, 5. The PCI Express 2.0 available on the new Intel® Xeon® processors provides flexible x16, x4 or x1 lanes for versatile applications. The server-grade SHB108 is designed to provide higher performance with greater power efficiency and is ideal for applications such as network security, storage server, POS, kiosk, medical, gaming, digital signage, and surveillance security monitoring.
"Powered by the new-generation Intel® Xeon® processor E3-1200 series with Intel® C206 chipset, Axiomtek SHB108 supports DDR3 unbuffered ECC memory, SATA RAID, Intel® AMT 7.0, and dual Gigabit LANs for network-intensive applications. Processor supported on the SHB108 also includes the Intel® Core(TM) i3 processor. Features include Intel® Turbo Boost technology, Intel® Hyper-Threading technology and enhanced 3D performance. This high performance PICMG 1.3 slot CPU card also features an integrated Intel® VT, Intel® TPM 1.2 and Intel® AMT 7.0 for higher security and easier maintenance," said Roger Shyu, Product Manager of Product & Marketing Division at Axiomtek.
In terms of I/O ports, the SHB108 offers fourteen USB 2.0 ports, two Gigabit LAN ports, VGA/DisplayPort (optional), HD audio, one RS-232/422/485 port and one RS-232 port. Data security and availability are enhanced by two SATA-6Gb/s and four SATA-3Gb/s ports with RAID 0, 1, 10, 5. The SHB108 provides reliable operation and non-stop capability with watchdog timer, as well as SMART FAN function controlling the fan speed to keep temperature within a specified range. The new generation SBC platform is fully compatible with Axiomtek's PICMG 1.3 full-size passive backplanes, and we offer various industrial housing enclosures and have the capability to assist with any customer's industrial integration requirements.
The high-performance SHB108 will be available around the end of December, 2011. For more product details or pricing, please visit our global website www.axiomtek.com or contact our sales representative at info@axiomtek.com.tw.
Advanced Features
Intel® LGA1155 for Xeon®/Core(TM) i3 + C206 PCH
2 DDR3 1066/1333 DIMMs support up to 16 GB memory capacity
Intel® AMT 7.0 & TPM 1.2 supported
Two SATA-6Gb/s and four SATA-3Gb/s ports with RAID 0, 1, 10, 5 function
PCIe Gen2 at 5GT/s supported
Supports fourteen USB 2.0 ports, two COM ports, VGA and dual 10/100/1000 Mbps LANs
Supports ECC memory
