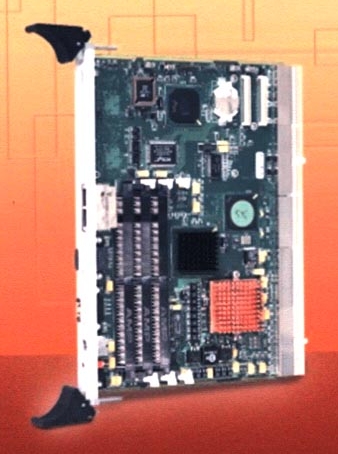

Single Board Computer has 4HP single-slot form factor.
May 10, 2002 - CSBC1100 6U CompactPCI(R) unit uses Intel(R) Low Power Mobile BGA Pentium(R) III processor. It has 3 memory sockets that can handle up to 768 MB of 100 MHz low-profile SDRAM with ECC support. Processor has 256 KB of on-die L2 cache supported by Intel 82440BX AGP set. On-board functions include 64-bit AGP video controller, USB, 32-bit PMC controller, dual serial ports, and single parallel port. Board supports up to 7 CompactPCI slots.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Carlo Gavazzi Electronic Packaging
10 Mupac Dr.
Brockton, MA, 02301-5548
USA
NEW 4HP, SINGLE-SLOT, SINGLE BOARD COMPUTER
BROCKTON, MA -A new Single Board Computer available from CG Mupac features a low-power, low-profile 4HP single-slot form factor, exceptional price, performance, and scalability. Designated the Model CSBC1100, this 6U CompactPCI® unit uses the Intel(R) Low Power Mobile BGA Pentium(R) III processor and is ideal for applications that have tight thermal budgets.
The CSBC1100 boasts three memory sockets that can handle up to 768 MB of 100 MHz low-profile SDRAM with ECC support. Its processor has 256 KB of on-die L2 cache supported by the Intel
82440BX AGP set. Numerous on-board functions include a 64-bit AGP video controller (Intel 69030), USB, a 32-bit PMC controller, dual serial ports, and a single parallel port. The PCI Ultra DMA/33 IDE (33 MB/sec) and Ultra2 Wide SCSI (80 MB/sec) connectors, as well as dual 10/100 MB Ethernet controllers, are on the PCI Bus at Level 0. The board supports up to seven CompactPCI slots. Input/output is available through the front panel or an optional 80-mm rear transition module.
Other features of the Model CSBC1100 include the Phoenix Technologies AwardBIOS in boot block flash, which supports diskless/keyboardless/videoless operation extensions, programmable CPU/memory wait states, and system/video/SCSI BIOS shadowing. The unit also supports multilevel PCI-to-PCI bridging and full Hot Swap compliance and provides a programmable two-stage watchdog timer with a battery-backed clock.
A two-year limited warranty is standard. Prices start at $2,224 with deliveries from stock to 4 weeks.
CG Mupac
CG Mupac, an ISO certified company, designs and manufactures standard and custom Single Board Computers (SBCs), chassis, and integrated system products. The company's experienced teams of
design and engineering professionals work closely with customers to provide "total cost solutions" through integrated system designs that meet specific application needs.
CG Mupac is committed to expanding its depth of systems products by investing heavily in design engineering talent and product development software. Coupled with a vertically integrated
manufacturing capability, the company has a decided advantage in providing Industrial, Military, Telecom, and Medical customers with the most cost-effective solutions for their integrated electronic systems. The company has design and manufacturing facilities in Brockton, MA; Houston, TX; Garland, TX; Sparks, NV; and Los Gatos, CA.
For complete details about CG Mupac and its electronic system design and manufacturing capabilities, contact Caryn A. Banks, Marketing Communications Manager, CG Mupac, 10 Mupac Drive, Brockton, MA 02301, TEL: (508) 588-6110, FAX: (508) 588-0498, www.gavazzi-mupac.com.
|
|
|
|
|
|
|
|
