Single Board Computer handles industrial applications.
January 13, 2003 - With -40 to +60°C operational range, EBC-BX Intel 700 MHz SBC combines Intel Pentium III CPU, with core logic functions, and video controller, with CRT and flat panel support. It includes 10/100 Mbps Ethernet controller, 4 serial channels, 48 bi-directional, digital I/O lines, and solid-state disk support. Measuring 5.75 x 8.0 in., EBX-compliant platform supports Windows CE.NET/XP, Linux, QNX, and VxWorks, and USB, PC/104, and PC/104-Plus expansion for peripheral devices.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
WinSystems, Inc.
715 Stadium Drive
Arlington, TX, 76011
USA

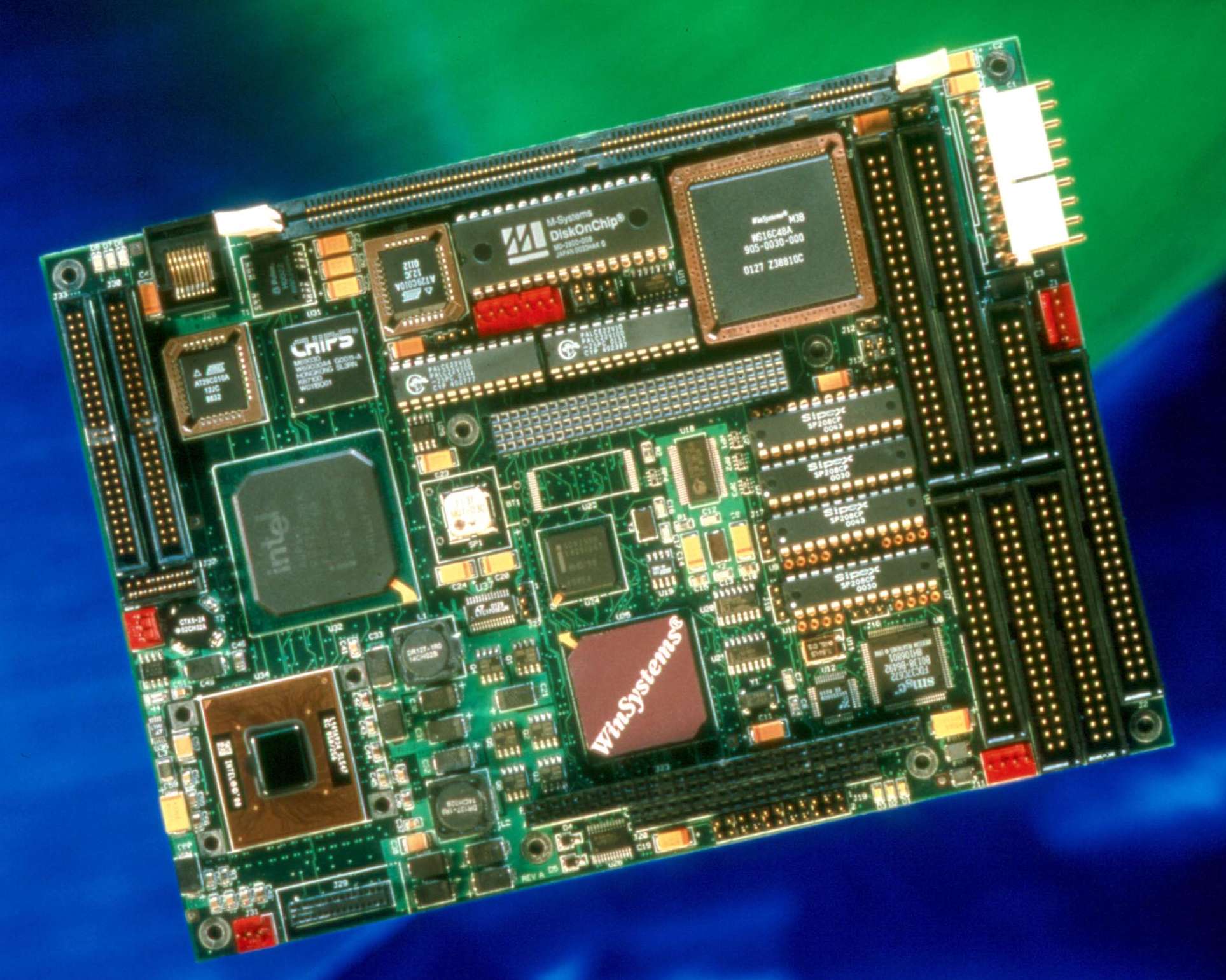

New EBX Pentium® III SBC for Industrial Applications
-40° to +60°C Operational Range on a PC-Compatible EBX sized board
January 13, 2003, Arlington, Texas -- WinSystems announces their EBC-BX, an Intel 700 MHz low-power, Pentium III-based single board computer (SBC) offering an operational temperature range of -40° to +60°Celsius. The EBC-BX combines 6 important features needed for computation-intensive industrial applications onto a 5.75" x 8.0" (146mm x 203mm) EBX-compliant platform. They are: (1) Intel Pentium III CPU with core logic functions, (2) Video controller with CRT and flat panel support, (3) 10/100 Mbps Ethernet controller, (4) Four serial channels, (5) 48-bidirectional digital I/O lines, and (6) Solid State Disk support. Plus, it also supports USB, PC/104 and PC/104-Plus expansion for additional peripheral devices. Since the EBC-BX's architecture is PC/AT compatible, it supports Windows CE.NET/XP, Linux, QNX, VxWorks, and a vast software tool set including web servers, device drivers, and libraries, which facilitates speedy program development and checkout.
PRODUCT FEATURES
A 700 MHz Intel Pentium III is used since it is designed for low-power and space-constrained applications. It also includes 256KB of on-die L2 cache operating at the CPU's core frequency. The Intel 440BX system controller chipset provides the core logic that makes the board PC/AT compatible. The 440BX includes the DRAM controller, internal PCI bus and external PC/104 Bus interface logic, real-time clock, plus integrated peripherals including DMA, timers, interrupt, and keyboard controllers. A 3.5"/5.25" floppy disk controller and PCI EIDE hard disk interface are also included. Both CPU and system controller are supplied from Intel's Embedded Architecture Division for long-term availability.
Up to 256Mbytes of system SDRAM with standard 168-pin SIMM devices are supported. Also a 32-pin memory socket allows an EPROM or M-Systems' DiskOnChip (DOC) Flash memory to serve as a bootable SSD Drive.
An onboard, high-performance PCI video controller will drive both CRT and flat panels simultaneously. It supports color STN, TFT, and dual scan color STN panels with 8- to 36-bit interface lines and resolutions up to 1280 x 1024. An Intel 82559 PCI Ethernet controller provides a high-speed 10/100Mbps link plus net boot support from a remote network server.
The EBC-BX has four independent, asynchronous serial RS-232 COM channels that operate from 50 to 115.2K bits per second. COM1 and COM2 will also support the RS-422/485 or J1708 electrical interface. A standard LPT line printer port supports Extended Capabilities Port (ECP) and Enhanced Parallel Port (EPP) functions. The LPT port is designed to provide enhanced ESD and Latch-up protection of up to 4KV/300mA. A 48-line digital I/O controller is on board that is programmable for each line providing input, output or output with readback.
The EBC-BX requires only +5 volts and typically draws 3.4 Amps with 128Mbytes of SDRAM. This is about half the current of a similar Socket 370 processor design.
PRICING AND AVAILABILITY
The 700 MHz EBC-BX list price is $1095. A 400 MHz Celeron version lists for $895. Delivery is stock to 3 weeks. For sales information, please list; WinSystems' Application Engineering Group at 715 Stadium Drive, Arlington, Texas 76011, Ph: (817) 274-7553, fax: (817) 548-1358, e-mail: info@winsystems.com and Website http://www.winsystems.com.
|
|
|
|
|
|
|
|
