Signal Conditioner provides configurable input/output modes.
September 19, 2002 - Universal Signal Conditioner is DIN rail mountable and features galvanic isolation for re-transmission and measurement of isolated analog output signals. It provides 3 measurement samples per second for all input types. Unit also provides 60 V of continuous protection for all inputs and protects outputs and power supplies against over-voltages to 400 W/ms. Three-point insulation is provided up to 1500 Vac.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Wieland Electric Inc.
49 International Rd.
Burgaw, NC, 28425
USA
Signal Conditioner Provides Configurable Input/Output Modes for Universal Signals

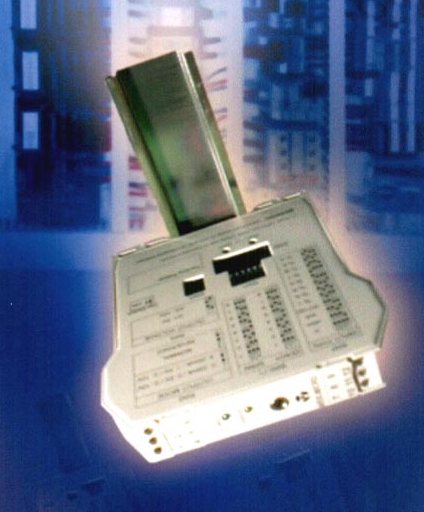

BURGAW, N.C. (September 4, 2002) - Expanding its DIN rail mountable electronic line, Wieland Electric Inc. has developed a Universal Signal Conditioner with galvanic isolation for the re-transmission and measurement of isolated analog output signals. The module accepts universal inputs including: voltage, current, thermocouple, PT100 and potentiometer within one configurable module. The sensor is powered by a two-wire technique that stabilizes up to 2OmA with short circuit protection. In addition, the Universal Signal Conditioner provides numerous added features for convenient installation and maintenance.
" Wieland has designed a universal converter module that accepts most standard input signals, maximizes signal input and provides output protection," said Wieland Product Manager, Marc Immordino. "The full benefit comes with the added features, such as front panel indicators, dip-switch mode selections and PC programming options."
The Wieland Universal Signal Conditioner provides three measurement samples per second for all input types. It also provides 60V of continuous protection for all inputs (except current) and protects outputs and power supplies against over-voltages to 400W/ms. Three-point insulation is provided up to 1500VAC. The module also furnishes zero and span adjustments for the inputs and outputs.
"The ability to customize the module's capabilities on site with the flip of a switch makes the installer's job both fast and convenient, Immordino explained. "In the case of replacement, a technician can simple set the input/output parameters and quickly bring the system back online."
Pricing for Wieland's Universal Converter starts at $180.95 with availability from stock to 6 weeks.
Wieland Electric Inc. is a leading international manufacturer of wiecon PC board, selos, taris and fasis DIN rail terminal blocks, wire management products, revos (rectangular) connectors, electronic interface modules, wipos power supplies and ricos remote I/O communications systems. Based in Burgaw, N.C., Wieland operates manufacturing facilities worldwide and was the first terminal block supplier to achieve ISO 9001 and ISO
14001 certification. Along with nationwide sales and distribution networks in the U.S. and Canada, Wieland's North American operation provides value-added assembly, warehousing, computerized inventory control, customer service and engineering support.
|
|
|
|
|
|
|
|
