Sheet Metal Joiner features integral grounding clip.
April 16, 2010 -
Requiring cut-out of 1.177 x 0.547 in., SNAP-Joiner 1-042SL can join 2 panels with combined thickness of 0.142-0.358 in. Unit mechanically connects 2 coated or uncoated sheet metal panels together while creating automatic and secure metal-to-metal connection. Grounding clip teeth ensure penetration of painted or powder-coated surfaces, establishing electrical connection between merged panels in all applications.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
DIRAK
4115 Pleasant Valley Rd.
Chantilly, VA, 20151-1220
USA
DIRAK SNAP- Joiner Now Available with Grounding Clip
DIRAK has expanded its SNAP-Joiner product offering to include a joiner with an integral grounding clip to address the growing global concern for grounding in electrical applications across many industries.

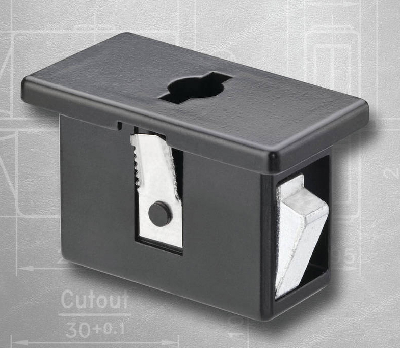

The new 1-043SL SNAP-Joiner combines the function of mechanically connecting two sheet metal panels together while simultaneously creating an automatic and secure metal-to-metal connection between two coated or uncoated sheet metal panels. Therefore, just one of the two panels has to be grounded.
The teeth of the grounding clip are designed to ensure penetration of painted or powder-coated surfaces therefore establishing an electrical connection between the merged panels in all applications. After installation, the grounding clip is still visible, allowing for visual inspection. If the grounding clip is present, the connection is present.
An added feature of the new 1-043 SNAP-Joiner includes the ability to remove the joiner from the face of the joiner. The actuation tool can be inserted into the slot on the face of the SNAP- Joiner. Once the tool is inserted and turned clockwise, the tool remains captive in the slot allowing the user to pull the SNAP-Joiner from the panel.
The 1-043 SNAP-Joiner requires a cut-out of 30 X 14 mm (1.177" X 0.547") on a sheet metal panel and can join two panels with a combined thickness of 3.6 mm to 9.1 mm (0.142" to 0.358").
DIRAK is a global designer, manufacturer, and distributor of innovative, high quality system solutions for latching, hinging and profile technology. DIRAK products are sold and distributed globally through a network of authorized sales representatives.
|
|
|
|
|
|
|
|
