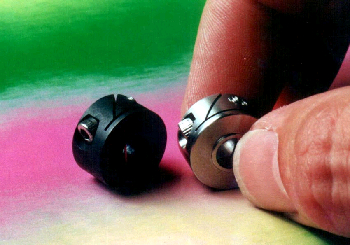

Shaft Collars feature integral hub fastener.
October 6, 2005 -
Equipped with built-in bearing shim spacer, Series S25FB9 and S25FY9 consist of brass and 303 stainless steel shaft collars, respectively, with ODs from .433-1.496 in. diameter. Units are designed to fit shafts ranging from .12-¾ in. diameter. Integral Fairloc® hub fastener eliminates marred shafts, adds positive metal-to-metal fastening strength along both hub sections, and permits frequent phase, timing, and position adjustment.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Sterling Instrument
2101 Jericho Turnpike, Box 5416
New Hyde Park, NY, 11042-5416
USA
New Series of Shaft Collars from Sterling Instrument Feature the Integral Fairloc® Fastener
New Hyde Park, New York - A new series of shaft collars manufactured by Sterling Instrument (an ISO 9001 manufacturer) incorporate a built-in bearing shim spacer and feature the Fairloc® integral hub fastener. These collars, identified as the S25FB9 (Brass) and S25FY9 Series (303 Stainless Steel), are stocked for immediate delivery in both inch and metric sizes. They are designed to fit shafts that are .12" to 3/4" (3 to 20 mm) in diameter. Their OD's range from .433" to 1.496" (11 to 38 mm) in diameter.
Fairioc® is a patented integral hub fastener which eliminates marred shafts. The choice of Fairloc® hubs permits frequent phase adjustment, timing and position adjustment while adding positive metal-to-metal fastening strength along both hub sections. The Fairloc® integral hub fastener consists of two slots that are machined into the hub, one radially the other angularly, to create a transverse wedge which remains attached to the solid portion of the hub on one side. The resultant cantilevered clamping section has a tapped hole to accept a cap screw which passes through a clearance hole in the solid portion of the hub, and into a threaded hole in the transverse wedge section. As the screw is tightened, the cantilevered section clamps the shaft securely. The screw can be tightened and released repeatedly without marring the shaft or affecting its torque-transmitting abilities.
Detailed specifications are contained in SI Catalogs D785 (metric) and D790 (inch) available free upon request from Sterling Instrument, These catalogs can be viewed now on the Web at: www.sdp-si.com. or via mail request at: 2101 Jericho Turnpike, Box 5416, New Hyde Park, NY 11042-5416. Phone: 516-328-3300 Fax: 516-326-8827. Web: http://www.sdp-si.com
|
|
|
|
|
|
|
|
