Servo Couplings suit precision positioning applications.
April 6, 2010 -

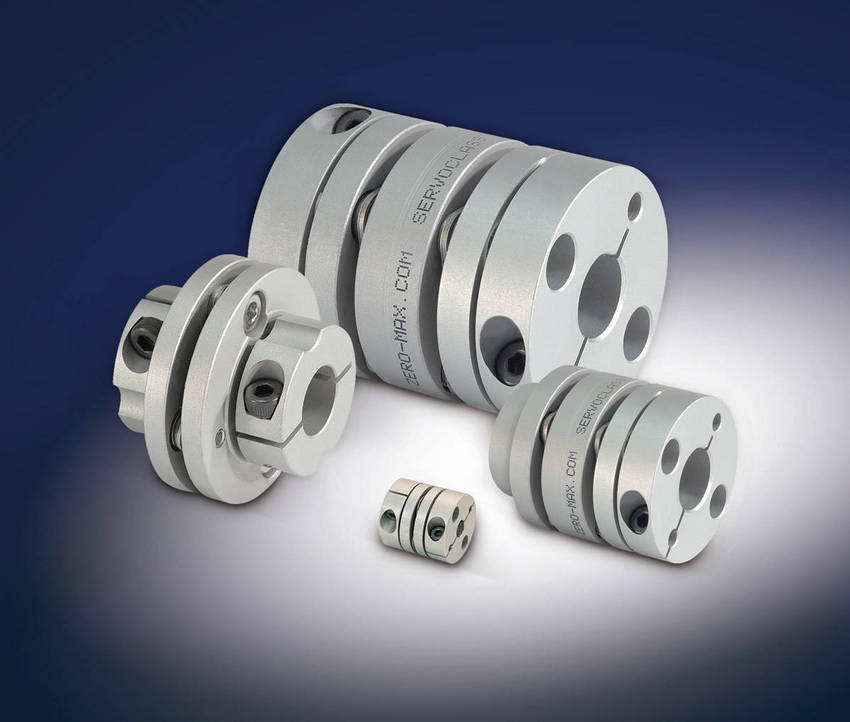

Handling bore diameters from 0.875-1.378 in. and operating torque from 3,937-9,843 in. lb, ServoClass® couplings provide high torsional stiffness, zero-backlash, and low hysteresis. Made from RoHS compliant materials, couplings are lightweight and feature 304 stainless steel disc packs and 7075-T6 aluminum hubs and center members. Units are available in single and double flex models in inch and metric sizes, and feature clamp style hubs with corrosion resistant socket head cap screws.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Zero-Max, Inc.
13200 Sixth Ave., N.
Minneapolis, MN, 55441 5537
USA
Zero-Max ServoClass® Couplings Provide High Torsional Stiffness for Precision Positioning -- Zero Backlash and Low Hysteresis Ensures Repeatable Precise Positioning
Plymouth, Minnesota: ServoClass® Couplings from Zero-Max are ideal for the precision positioning requirements and high reverse load characteristics of today's challenging AC and DC servomotor applications.
Providing high torsional stiffness for precision positioning, they have zero-backlash and low hysteresis ensuring repeatable precise positioning. They are ideal for applications requiring high speed reversing loads and accurate positioning repeatability. These applications include automation, packaging, semi-conductor assembly and virtually any system using ball screws and servo motors.
Three new sizes have been added to the Zero-Max ServoClass coupling line. They
handle bore diameters from 0.875 in (20mm) to 1.378 in. (35mm) and operating torque from 3937 to 9843 in. lbs (100 to 250 Nm). Many additional sizes are available starting with the smallest bore size 0.157 in (4 mm) and larger.
All ServoClass couplings are manufactured of RoHS* compliant materials. They are
lightweight and are designed with 304 stainless steel disc packs and 7075-T6 aluminum hubs and center members. They are available in single and double flex models in inch and metric sizes. All models and sizes feature clamp style hubs with corrosion resistant socket head cap screws.
"Zero-Max ServoClass couplings provide a superior option compared to beam or bellow
style couplings," reports Robert Mainz, Zero-Max sales manager. "As the cycle becomes faster, they outperform beam couplings, which experience harmful windup. Zero-Max couplings also have a robust design so they outperform the fragile design of bellows couplings."
Download 2D and 3D CAD files or see more information at Zero-Max new website:
www.zero-max.com
Email: sales@zero-max.com Or call 1-800-533-1731 for FREE brochure. Outside US
and Canada call 763-546-4300.
Write to Zero-Max at 13200 Sixth Avenue North, Plymouth, Minnesota 55441-5509. Fax: 763-546-8260.
