Seal-Less Mag-Drive Pump suits critical metering applications.
July 21, 2011 -

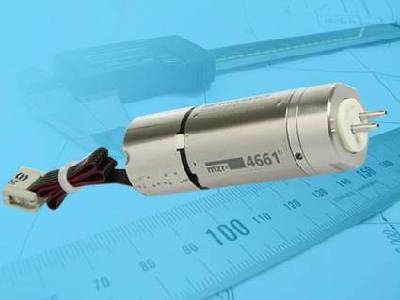

Measuring 22 mm D x and 69 mm L, Model HNP MZR 4661 is designed for OEMs and small system builders that require pulseless liquid flows from 4.8-72 ml/min on system pressures up to 6 bar. Hermetic design incorporates inner magnet system driven by rotating magnetic field and integrated speed control. For wear resistance, leak-free micro annular gear pump is constructed of ultra-hard materials, including stainless steel, ceramics, and NdFeB magnets.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
Michael Smith Engineers Ltd
Oaks Road, Woking,
Leak-Free, Seal-Less Mag-Drive Pump for Critical Applications
A magnetically driven micro annular gear pump, which is ideally suited to handling liquids in critical metering applications where reliable, leak-free pumping is essential, has been introduced by MICHAEL SMITH ENGINEERS. The ultra-compact HNP MZR 4661 pump is designed for OEM's and small system builders who require a pump to deliver precise, pulseless flows from 4.8 ml/min up to 72 ml/min on system pressures up to 6 bar.
This pump benefits from a hermetic design incorporating a powerful inner magnet system driven by a rotating magnetic field and an integrated speed control. However, the pump is very compact with a diameter of just 22mm, a length of 69mm and weighs only 100g. Although compact and lightweight the MZR 4661 is built to ensure a long service life thanks to the use of wear-resistant, ultra-hard materials including stainless steel, ceramics and NdFeB-magnets.
Fuel cell operations are one particular application where these pumps will be appreciated, on metering tasks for water, ethanol, methanol and other fuels occurring in these industries. Other applications include Ad-Blue injection into catalytic converters for diesel engines to reduce emissions and also dialysis and other similar medical device applications.
Further details on HNP MZR pumps are available from:
Michael Smith Engineers,
Oaks Road, Woking, Surrey, GU21 6PH, UK.
Tel: FREEPHONE 0800 316 7891.
Fax: 01483 723110.
