Sanders feature long handle for optimal surface finish.
November 3, 2006 -
Available in 5 and 6 in. dia models, SX Series rotates at 12,000 rpm and comes in non-vacuum, self-vacuum, and external vacuum models. Rotating exhaust silencer on non-vacuum and external vacuum units directs exhaust air 30° away from operator. Temperature-insulating, oil-resistant handle enables comfortable positioning for single- or 2-handled control. Equipped with 0.3 hp motor, sanders are rated for 2,000 hr of service and come with Velcro-backed or optional self-adhesive pads.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Chicago Pneumatic Co.
1800 Overview Dr.
Rock Hill, SC, 29730-7463
USA

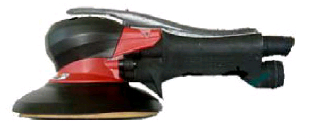

CP's Pneumatic SX Series Sanders Now Give Operators A Handle On Surface Perfection
There's nothing like a smooth finish on metal and wood. And to help you attain an exceptional surface finish more easily Chicago Pneumatic (CP) now provides a long handle on its low profile SX sanders.
The temperature-insulating, oil-resistant handle accommodates comfortable positioning for single- or two-handled control, as shown below. And, as with non-handled versions of SX Sanders, palm grips are included in two sizes for added operator comfort.
The handled SX Series Sanders rotate at 12,000 rpm. Choose between 5-inch or 6-inch diameter models in three types: non-vacuum, self-vacuum and external vacuum. Most models are available in choice of two random orbiting patterns:
o 3/16 in / 5 mm diameter for a standard finish
o 3/32 in / 2.4 mm diameter for an ultra fine finish.
Features of the SX Sanders
o Single- or two-handed control
o Rotating exhaust silencer on non-vacuum and external vacuum sanders directs exhaust air 30 degrees away from operator
o Internal counterweights reduce vibration to less than 2.5 m/s2 for all tools
o Noise levels are 76 dB(A) for non-vacuum tools, 78 dB(A) for external vacuum tools, and 85 dB(A) for self vacuum tools
o Powerful 0.3 horsepower motor
o Rated for 2,000 hours of service
o Power to noise level ratio: 210W (0.3 hp) / 76 dB(A)
o Dimensions: Length: 10 in / 262 mm; height with pad: 3.25 in / 83 mm
SX Sander Range
Self-vacuum sanders (ending in V) include a hose and bag. Central vacuum models (ending in C) are designed for facilities with a central dust collection system. Two of the non-vacuum models offer a vinyl pressure sensitive adhesive (PSA) sanding pad. Sanding discs are not included.
3/16 in / 5 mm 3/32 in / 2.4 mm
Random orbital diameter Random orbital diameter
(for a standard finish) (for an ultra-fine finish)
5-in sander models
SXRB50H 6151703530 SXRA50H 6151703640
SXRB50H* 6151703540
SXRB50HC 6151703610 SXRA50HC 6151703700
SXRB50HV 6151703580 SXRA50HV 6151703670
6-in sander models
SXRB60H 6151703550 SXRA60H 6151703650
SXRB60H* 6151703560
SXRB60HC 6151703620 SXRA60HC 6151703710
SXRB60HV 6151703590 SXRA60HV 6151703680
* Sanders equipped with PSA pad. In the model number, V=Venturi vacuum with hose and bag; C = central vacuum.
Sanding Pads
Choose between standard VelcroŽ -backed (hook & loop) or optional self-adhesive pads sized for the tool. The weight of the pad (with 3rdparty sanding disc) ranges from 100 to 130 grams for minimal tool vibration.
Applications
General Industry
o Anywhere two-handed sanders are used: woodworking and metal finishing
o Furniture varnish and joints
o Sheet metal
o White goods / appliances
Air and Space Craft (ASC)
o Fuselage and wings
o Carbon fiber components
o Paint maintenance
o Wherever tool weight is a challenge especially for overhead work
Land Transportation
o Metal and composite component surfaces
o Body panels
o Entire vehicle
o Removing defects
o Smoothing sealers
o Paint shop varnish/paint polishing
o Wherever tool access is a challenge
Composites
o Rough composite components
o Painted components
CP designs, manufactures and supplies the complete solution with electric and pneumatic industrial and vehicle service assembly tools and systems targeted toward land transportation (car, truck, bus and components) aerospace, appliance, general industry and the vehicle service markets. CP is dedicated to continually providing the best in design, ergonomics, quality and performance - the ultimate tool solutions for high productivity, cost efficiency and value. To learn more, phone toll-free 888-298-2905 in Novi, MI or visit Chicago Pneumatic on the web at http://www.cp.com.
|
|
|
|
