SMT Inductors are RoHS and China RoHS compliant.
July 27, 2007 -
Surface-mount power inductors feature ferrite shield to reduce EMI and operate from -40 to +125°C. Offering inductance values between 0.28 µH and 1.0 mH, 4500 series has overall height of 3.55 mm and is rated up to 8 A while 4600 series has height of 4.55 mm and is rated up to 8.7 A. Single-winding models 4700S, 4800S, and 4900S have 5.0, 6.0, and 8.0 mm heights respectively, and inductance range from 1.0 µH to 1.0 mH and handle current levels up to 11.8 A.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
C & D Technologies, Power Electronics Div.
3400-T E. Britannia Dr.
Tucson, AZ, 85706
USA

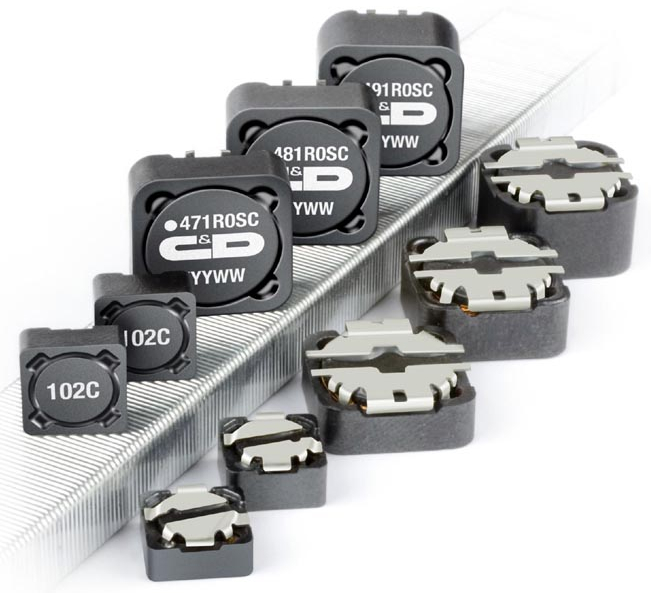

C&D Technologies Launches Five New Inductor Ranges to Give Design Engineers Greater Choice
o Five new series of shielded surface-mount inductors
o RoHS & China RoHS compliance, UL 94V-0 materials and J-STD-020-C reflow across the range
o Inductance values from 0.28µH to 1.0mH
o Top end current ratings from 8A to 11.8A
C&D Technologies has increased its portfolio of surface-mount power inductors with the introduction of five new series of bobbin format devices. The 4500, 4600, 4700S, 4800S and 4900S series offer a broad range of inductance values and current ratings to provide design engineers tasked with developing power systems, the maximum amount of choice for their applications.
The new ranges have a compact design that aids their inclusion in applications where PCB real-estate is limited and component height is restricted. All parts feature an integral ferrite shield to reduce electromagnetic interference (EMI) and are fully compliant with the RoHS directive. As is the case with the majority of C&D's existing magnetic products, the new inductors also comply with the requirements of China RoHS.
The 4500 and 4600 series are suitable for power-line filtering applications found in consumer electronics equipment such as desktop computers, LED applications and GPS systems. They are also ideal for use in a wide range of industrial and telecom applications including network hubs, bridges and routers, and high frequency wireless communication devices.
The 4600 series is rated up to 8.7A and offered with inductance values between 0.28µH and 1.0mH. The lower profile 4500 series has the same inductance values and a maximum 8A rating. Both devices have a footprint of 7.3mm x 7.3mm. Overall height is 3.55mm for the 4500 series and 4.55mm for the 4600 series. Operating temperature range is -40ºC to +125ºC.
The 4700S, 4800S and 4900S are single winding alternatives to the 4700, 4800 and 4900 ranges, all are suitable for use between -40ºC and +125ºC. These parts have been designed for use in switching power supply and power-line filter circuits. All share the same 12.2mm x 12.2mm footprint and are ideal for any application requiring a high saturation current in a low-profile package. They all offer the same inductance range of 1.0µH to 1.0mH, but are rated with increasing current levels up to 11.8A, as a result of their differing heights (5.0, 6.0 and 8.0mm respectively).
Compliance with UL 94V-0 and J-STD-020-C plus tape and reel packaging are common to all of the new parts.
Note: Datasheets for these products can be found by visiting www.cd4power.com/magnetics
Contact details to be published:
C&D Technologies, Inc.
Power Electronics Division
11 Cabot Boulevard
Mansfield MA 02048-1151
USA
Tel.: +1 508 339 300 Ext: 117
Fax: +1 508 339 6356
E-mail: media@cdtechno.com
Web www.cd4power.com
About C&D Technologies
C&D Technologies, Inc. is a technology company that produces and markets systems for the conversion and storage of electrical power, including telecom/industrial batteries, rectifiers and electronics. Corporate headquarters are in Blue Bell, Pennsylvania, USA and the company is traded on the NYSE under the symbol 'CHP'.
The Power Electronics Division of C&D Technologies, Inc. (www.cd4power.com) is headquartered in Mansfield, Massachusetts, USA. The division designs, manufactures and distributes DC/DC converters, AC/DC power supplies, magnetics, data acquisition devices and panel meters, and offers these products in custom, standard and modified-standard variations. These products, which are built to exacting requirements in ISO9000:2000-approved facilities, are typically used worldwide within telecommunications, computing, industrial and other high-tech applications.
|
|
|
|
|
|
|
|
