SMD True Sinewave VCXO combines high frequency, low noise floor.
June 29, 2012 -

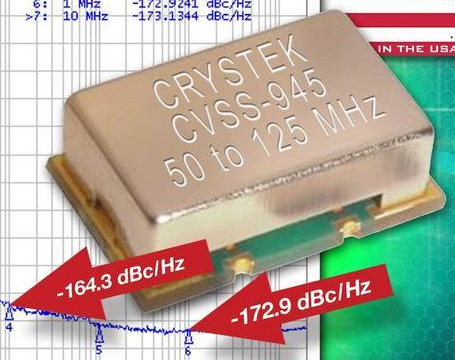

Supplied in 9 x 14 mm SMD package, CVSS-945 True SineWave Voltage Controlled Crystal Oscillator (VCXO) provides -172.9 dBc/Hz noise floor at 1 MHz offset and ±20 ppm min APR pullability. Product is engineered to MIL-STD-883 and MIL-STD-202 specifications and generates frequencies from 50-125 MHz, with output level of +5 dBm min into 50 Ohms and harmonics lower than -25 dBc. Also, VCXO consumes 30 mA max current @ 5.0 V and generates no sub-harmonics.
Original Press release
Crystek Corp.
12730 Commonwealth Dr.
Fort Myers, FL, 33913
USA
New SMD True Sinewave VCXO from Crystek Provides High Frequency and Ultra Low Phase Noise Floor Performance
Fort Myers, FL - Crystek Crystals Corporation has launched the CVSS-945 - a True SineWave Voltage Controlled Crystal Oscillator (VCXO) providing
-172.9 dBc/Hz noise floor at 1 MHz offset and +/-20 ppm min. APR pullability. This high-performance VCXO is available in the industry standard 9x14mm SMD package and is engineered to MIL-STD-883 and MIL-STD-202 specifications.
The CVSS-945 VCXO generates frequencies between 50 MHz and 125 MHz, with output level of +5 dBm min into 50 Ohms and harmonics lower than -25dBc. The CVSS-945 consumes 30 mA max. current @ 5.0 volts and generates no sub-harmonics.
The CVSS-945 is ideal in PLL (phase locked loop) applications where the requirement is translating from 10 MHz to 100 MHz, as an example. For industrial and other rugged uses extended temperature operating range of -40°C to +85°C and other custom specifications are also available.
For pricing details, contact Crystek Corporation.
Family datasheets are available for download at www.crystek.com. For more information, contact sales at Crystek Corporation, 12730 Commonwealth Drive, Ft. Myers, FL 33913. Tel: 800-237-3061 or 239-561-3311; Fax: 239-561-1025; E-mail: sales@crystek.com; Web: www.crystek.com.
Crystek Corporation® has been providing frequency products since 1958, including quartz crystals, XOs (clock oscillators), TCXOs (temperature compensated crystal oscillators), VCOs (voltage controlled oscillators), and VCXOs (voltage controlled crystal oscillators). Crystek operates two divisions dedicated to frequency control. Crystek Crystal is dedicated to the development and manufacture of frequency products using quartz-based resonators. Crystek Microwave develops frequency control and support products for the microwave industry.
