SMA Connectors support frequencies up to 18 GHz.
March 18, 2002 - RS-3232-1 SMA male connector and RSA-3279-10 SMA female connector are made of gold-plated machined brass with gold-plated contacts and Teflon insulation. Panel-mount connectors have 0.500 in. square, 4-hole flanges with holes 0.339 in. on center. Machined Teflon insulation extends 0.126 in. with 0.085 in. dia. Gold-plated .012 in. dia solder post extends .051 in. from dielectric material. Each connector is shipped with protective plastic cap.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
RF Connector Operations
1 Kennedy Ave.
Danbury, CT, 06810
USA
RF Connectors Introduces New Panel Mount SMA Connectors

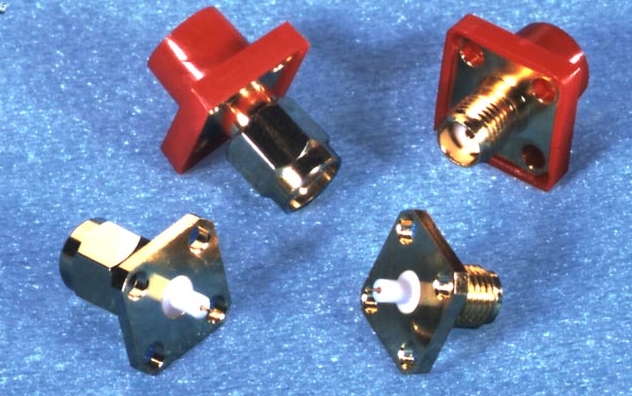

RF Connectors has released two new SMA panel mount connectors for use with frequencies up to 18 GHz where high quality with moderate cost is required. The RS-3232-1 is an SMA male connector and the RSA-3279-10 is an SMA female. Both are made of gold plated machined brass with gold plated contacts and Teflon insulation. Both feature .500" [12.7mm] square four-hole flanges with holes .339" [8.6mm] on center. The machined Teflon insulation extends .126" [3.2mm] with a diameter of .085" [2.16mm]. The gold plated .012" [.3mm] diameter solder post extends .051" [1.3mm] from the dielectric material. To protect the solder post assembly during shipping and handling, each connector is shipped with a protective plastic cap.
Available from RF Connectors Distributors throughout the US, Canada and Mexico. For additional information call 800-233-1728 or 858-549-6340. You can also e-mail: rfi@rfindustries.com. Visit our web site at www.rfindustries.com.
|
|
|
|
