SBC is based on Mobile GM45 Express chipset.
December 11, 2008 -
Supporting 45 nm Intel Core 2 Duo Mobile up to 1,066/800 MHz, LS-573 5.25 in. Miniboard incorporates Intel Socket P pin-out, 6 Intel Gigabit LAN ports, and graphics accelerator. It can hold up to 4 GB DDR3 SDRAM and features PS/2 keyboard and mouse and 5 x RS232C, 1 x RS232/422/485, and 8 x USB 2.0 ports. Onboard programmable 8-bit Digital I/O interface is included. Various displays are also supported as are Intel Clear Video Technology and graphics core speeds up to 533 MHz.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Taiwan Commate Computer Inc.
8F, No. 94, Sec. 1, Shin Tai Wu Rd
Taipei Hsien, ,
Taiwan

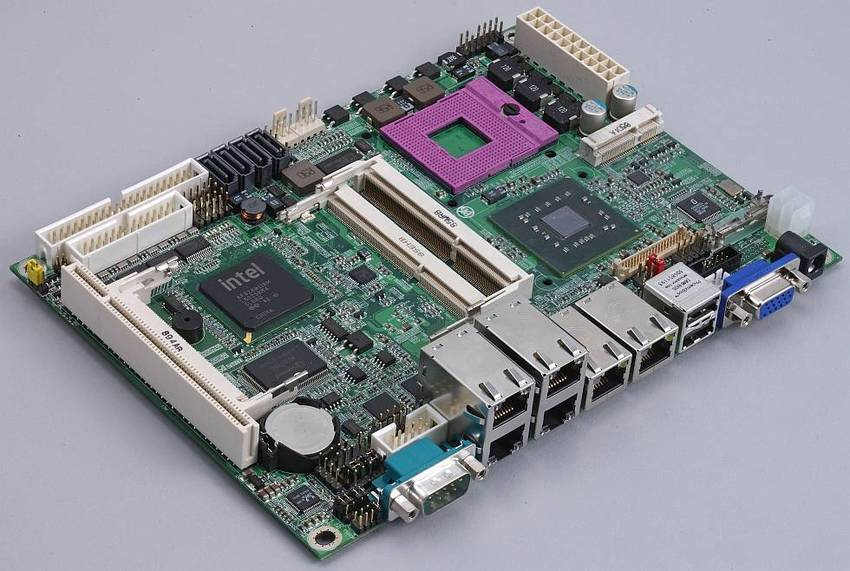

Commell Announces LS-573 5.25" Miniboard Based on GM45 Express Chipset
Support 45nm Intel Core 2 Duo Mobile up to 1066/800MHz (Penryn), DDR3 up to 4GB, 6 x Giga LAN, VGA, 4 x SATA, HD Audio, 8 x USB, 5 x RS232 & 1 x RS232/422/485, HDTV, LVDS, DVI (option), One PCIe mini card, 1 x Mini PCI, 1x PCI, DC9~24V
(TAIPEI, TAIWAN, 1 December, 2008) -Taiwan Commate Computer Inc. (COMMELL), the worldwide leader of single board computers, introduced the 5.25" LS-573 that incorporates an Intel Socket P pin-out compatible with Intel Core 2 Duo Mobile Penryn or Core 2 Extreme processors @ FSB 667/800/1066 MHz support for T8100, T8300, T9300, T9400, T9500, X9100, X9000 & Mobile Celeron 578, 575; validated with the Mobile GM45 Express chipset, providing excellent flexibility for developers of embedded applications by offering outstanding graphics, memory and I/O bandwidth, asset management capabilities, storage speed and reliability, such as interactive clients, gaming platforms and industrial automation equipment. It also comes with 6 Intel Gigabit LAN ports, was specifically designed for mainstream IDS/IPS, Anti-virus, VPN gateway and UTM applications.
LS-573 Miniboard integrated Mobile Intel Graphics Accelerator 4500MHD, Intel Clear Video Technology, and graphics core speeds up to 533MHz provide enhanced graphics and 3D rendering performance and enables high-definition video playback. It also supports numerous display, includes VGA, LVDS, HDTV, DVI.
COMMELL's LS-573 Miniboard supports DDR3 SDRAM up to 4GB, and comes with PS/2 Keyboard and Mouse, 5 x RS232C and 1 x RS232/422/485, 8 x USB2.0 ports, Realtek ALC888 HD audio, 4 x SATA interface, expansion slot with one Mini PCI, one PCIe mini card, one PCI.
LS-573 Features
CPU: Intel Core 2 Duo Mobile processors @ FSB 667/800/1066 MHz by the Socket P pin-out.
Memory: 2 x DDR3 SO-DIMM up to 4.0GB.
Chipset: Intel GM45 & ICH9M.
VGA Interface: Intel integrated extreme GMA 4500MHD technology with one onboard VGA port and support another optional VGA port for Dual CRT application.
LAN Interface: 6 x Intel 82573 Giga LAN.
LVDS: Onboard 18/24-bit dual channel LVDS with +3.3V/5V/12V supply.
Serial ATA: Support 4 x SATA interface with 300MB/s transfer rate.
Audio: Integrated ICH9M with Realtek ALC888 HD Audio.
I/O Ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports, 1 or 2 x DB15 VGA port, HDTV, DVI (optional), 1 x LCD inverter, 1 x PS/2 keyboard and mouse ports, 1 x Parallel.
Extended Interface: One PCI slot, 1 x Mini-PCI socket and 1 x PCI Express Mini Card socket.
GPIO Interface: Onboard programmable 8-bit Digital I/O interface.
WatchDog Timer: 256-level generates system reset programmable watchdog timer.
P/S: ATX or DC 9~24V.
