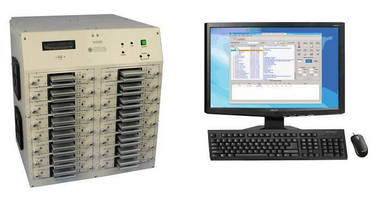

SATA/SAS SSD Tester provides diverse range of functions.
June 20, 2011 -
Featuring on-board Linux OS and SATA/SAS capabilities, modular M3300 can concurrently test up to 32 devices. Supported form factors include 3.5, 2.5, and 1.8 in. as well as custom SSDs using SATA I (1.5 GBps), SATA II (3 GBps), SATA III (6 GBps) single-channel interfaces or SAS (6 GBps) one- and 2-channel interfaces. Used for SSD production, engineering, and QA testing, product supports multiple test functions and logs results into SQL database.
Original Press release
International Microsystems, Inc.
556 Gibraltar Dr.
Milpitas, CA, 95035
USA
New SATA & SAS SSD Tester from International Microsystems
International Microsystems, Inc., announces the release of their M3300 SSD Tester. It features state-of-the-art SATA and SAS capabilities, an on-board Linux operating system, and much more.
International Microsystems, Inc. has just released their newest product, the M3300 SATA & SAS SSD Tester. The M3300 is a modular SATA/SAS Production Tester capable of testing up to 32 devices at a time. Supported form factors include 3.5", 2.5", 1.8", and custom SSD's using SATA I(1.5GB/sec), SATA II(3 GB/sec), SATA III (6 GB/sec) single channel interfaces and SAS (6GB/sec) one and two channel interfaces.
The M3300 is ideal for SSD Production, Engineering and Quality assurance Testing. Supported test functions on the M3300 include VCC and ICC margin testing, SCSI & ATA pass through commands, Speed testing, Read/Write functional testing, and Duplication functions including IMI Smart Copy support for a large number of file systems. Test results are logged into an SQL database for easy retrieval and analysis.
The M3300 runs under a full featured Linux operating system with a 17" LCD, keyboard and mouse. A two line LCD Display and Start/Stop keys allow monitoring and repeat execution from the Front Panel. It utilizes a powerful and easy to use Graphical User Interface which enables quick and easy creation of TCL job scripts. The M3300 supports 10/100/1000 Ethernet for connection to the user's network.
The new M3300 SSD Tester from International Microsystems provides an ideal solution for testing Solid State Drives. For more information or to request a quotation, please contact International Microsystems Inc., by phone at +1 408-942-1001, or in Europe +44 (0) 1793 876808 or e-mail IMI sales at sales@imi-test.com.
About International Microsystems, Inc:
International Microsystems Incorporated is the global leader in the design and manufacturing of Flash memory device duplication and test equipment. Their equipment and services can be found supporting many markets including industrial/embedded, satellite navigation, education, promotional, finance, medical, leisure and entertainment. For more information please visit IMI at http://www.imi-test.com.
|
|
|
|
