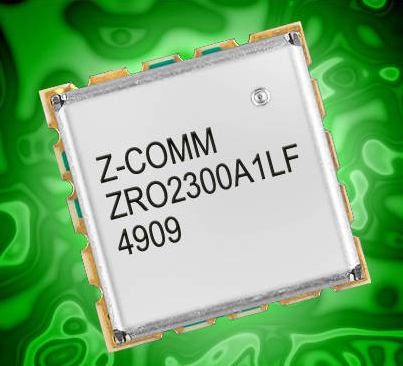

S-Band VCO features low phase noise.
December 7, 2009 -
Operating at 2,285-2,315 MHz, Model ZRO2300A1LF features tuning voltage range of 0.5-4.5 Vdc, typical phase noise of -113 dBc/Hz at 10 kHz offset, and typical tuning sensitivity of 13 MHz/V. Unit delivers output power of 3 dBm at 5 Vdc supply while drawing 18 mA over temperature range of -40 to 85°C. Housed in 0.5 x 0.5 x 0.22 in. MINI-16-SM package, RoHS-compliant voltage controlled oscillator features second harmonic suppression of -13 dBc.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Z-Communications, Inc.
9939 Via Pasar
San Diego, CA, 92126
USA
VCO: ZRO2300A1LF Features Low Phase Noise
Z-Communications, Inc. announces a new RoHS compliant VCO (Voltage-Controlled Oscillator) model ZRO2300A1LF in S-band. The ZRO2300A1LF operates at 2285-2315MHz with a tuning voltage range of 0.5-4.5 Vdc. This VCO features a typical phase noise of -113 dBc/Hz @ 10 KHz offset and a typical tuning sensitivity of 13 MHz/V.
The ZRO2300A1LF is designed to deliver a typical output power of 3 dBm at 5 Vdc supply while drawing 18 mA (typical) over the temperature range of -40º to 85º C. This VCO features typical second harmonic suppression of -13 dBc and comes in Z-Comm's standard MINI-16-SM package measuring 0.5 in. x 0.5 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The ZRO2300A1LF is also ideal for automated surface mount assembly and reflow.
ZRO2300A1LF is well suited for digital radio and fixed wireless applications that require ultra low phase noise performance. Additional specifications for this product can be found on-line at
http://www.zcomm.com/webstore/ProductInfo.aspx?productid=ZRO2300A1LF.
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.
