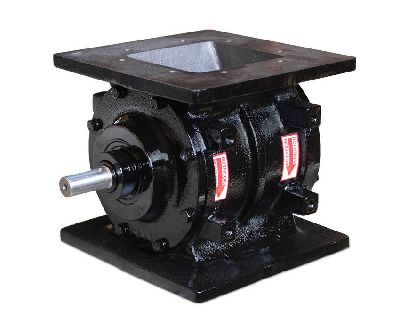

Rotary Valves maximize bulk material throughput.
August 21, 2012 -
Intended for feeding and metering applications, SD Series comes in 4 square-flange sizes from 6-12 in. and 4 heights from 10-18 in. Large pocket area between vanes of rotor aids in complete release of materials with poor flow characteristics, while 6-vane rotor design contributes to process efficiency by providing sufficient inlet and outlet sealing. Available in cast iron, 304 SS, or 316 SS, housings are CNC machined to precise tolerances, eliminating axial shaft movement and seal leakage.
Original Press release
ACS Valves
611 Argyle Street North
Caledonia, ,
Canada
Rotary Valve with High-capacity Rotor Design Provides 5% Increase in Cubic Feet/Revolution (CFR) Material Throughput; Relative to Comparable 8-vane Designs
CALEDONIA, Ontario, Canada - ACS Valves. The new SD Series of rotary valves from ACS Valves is designed to provide increased bulk material throughput efficiency in feeding and metering applications; when compared to standard 8-vane rotary valves. The construction of the SD Series rotor has larger pocket area between the vanes of the rotor; enabling greater pocket-fill capacity. Calculated at 100% pocket-fill capacity, an SD Series rotary valve can move over 5% more cubic feet/revolution (CFR) of bulk material than a comparable, 8-vane rotary valve. The large pocket area of the SD Series rotary valve also aids in improving the complete release from the rotor pocket of materials that may have poor flow characteristics. In addition to the high-capacity rotor design, the SD Series valve housings are cast in North America to ensure superior strength in the composition and solidification of the housing's metallurgy, and to eliminate dimples, crevices, and pits on the housing's product contact areas and other surfaces. The SD Series housings are CNC-machined to precise tolerances; eliminating axial shaft movement, seal leakage, and shortened bearing life.
The standard 6-vane rotor design of the ACS Valves SD Series also contributes to total process efficiency by providing sufficient inlet and outlet sealing and, therefore, maintaining proper pressure differentials upstream and downstream of the SD Series valve, while also reducing compressed air requirements.
ACS Valves SD Series rotary valves are available in cast iron, or 304 or 316 stainless steel. The SD Series is available in (4) square-flange sizes from 6 inches to 12 inches; and (4) heights from 10 inches to 18 inches. The SD Series also provides excellent performance in temperature applications up to 250ºF.
ACS Valves
611 Argyle Street, North
Caledonia, Ontario, Canada N3W 1M1
P: 800.655.3447
W: acsvalves.com
