Rotary Table suits 5th axis applications.
November 13, 2002 - Multi-faced NC Tsudakoma, for horizontal machining centers, has four 6 in. diameter platens, which rotate simultaneously at 33.3 rpm and are driven by additional machine axis or TPC-Jr controller with RS-232C interface capability. Accuracy is ±7.5 arc second with ±2 arc second repeatability. Clamp provides 156 N-m and is included for position machining. Larger models, custom faceplates, and hydraulic rotary joints are also available.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Koma Precision, Inc.
20 Thomson Road
East Windsor, CT, 06088
USA

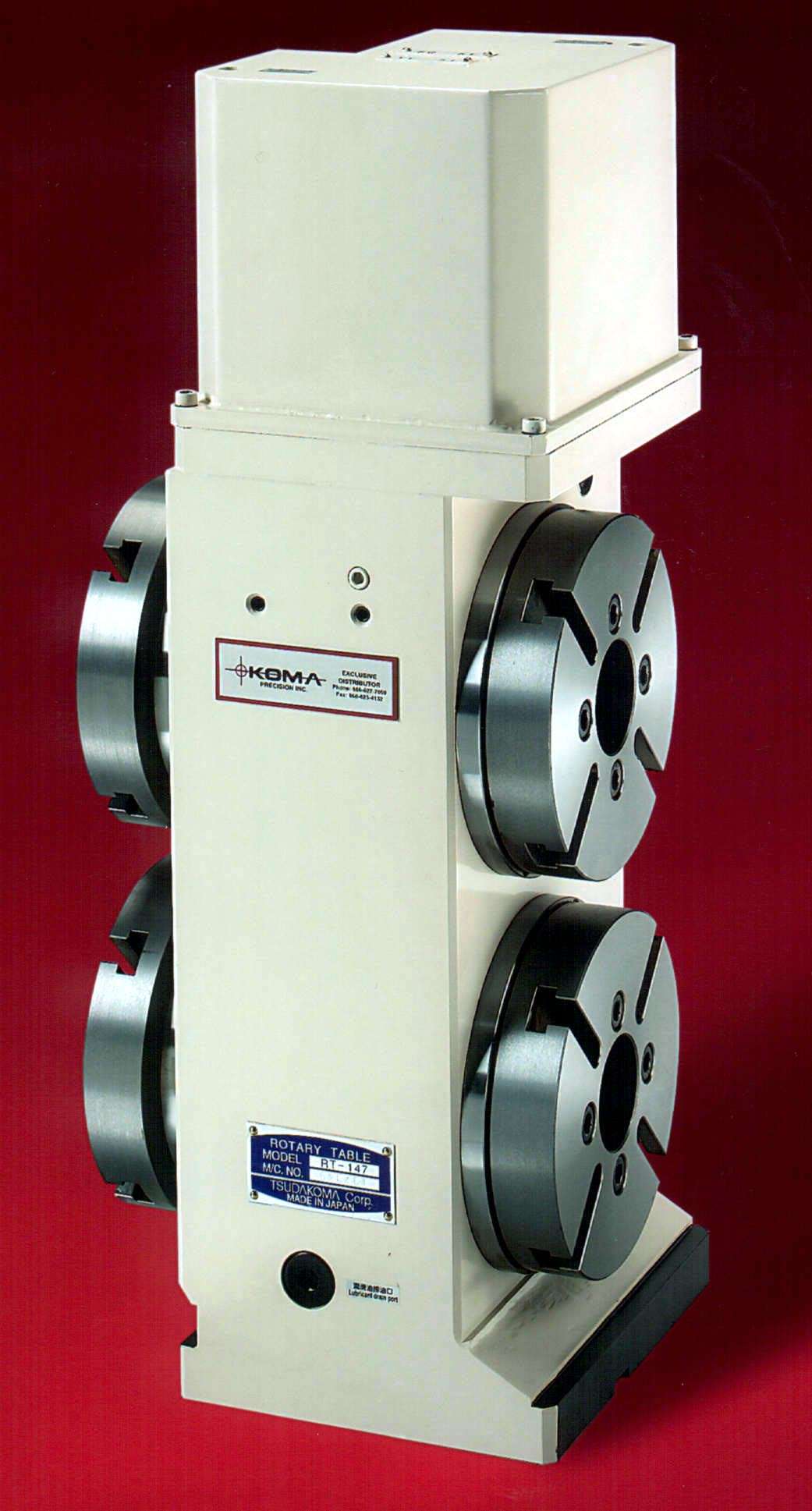

New Tsudakoma 5th Axis Rotary Table
for immediate release
East Windsor, CT October 28, 2002...Koma Precision, Inc. announces the new Tsudakoma multi-faced NC rotary table designed for high production 5th axis applications on horizontal machining centers. Four 6 inch diameter platens rotate simultaneously at 33.3 RPM driven by an additional machine axis, or Tsudakoma's own TPC-Jr controller with RS-232C interface capability. Powerful 156 N.m clamp for position machining is standard. Accuracy specification is +/- 7.5 arc second with a +/- 2 arc second repeatability. Larger models, custom faceplates, and hydraulic rotary joints are also available.
|
|
|
|
|
|
|
|
