Rotary Table features direct drive servo motor technology.
June 4, 2010 -
Fitted with 4-point contact preloaded ball bearings, SRT-03 Rotary Table offers low and high speed windings up to 1,000 rpm, 0.2 arc-sec resolution, and 5 arc-sec accuracy. Encoder is mounted directly to rotor for positioning accuracy and to eliminate backlash, positioning delays, and maintenance requirements. Providing peak torque of 10 Nm, table can be used as flexible indexer or to replace mechanical transmissions such as gearboxes and timing belts.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
IntelLiDrives Inc.
8510 Bustleton Avenue
Philadelphia, PA, 19152
USA

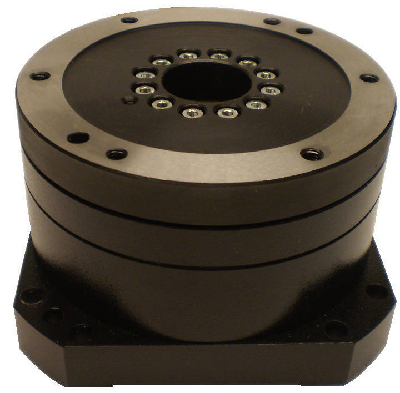

Compact Rotary Table SRT-03
IntelLiDrives, Inc. (www.intellidrives.com) released compact SRT Rotary Table with direct drive servo motor technology (DDR) to eliminate backlash, reduce the number of mechanical components and to provides stiff mechanical system for highly dynamic applications. Pre-tapped mounting holes and a hollow-through shaft permit a variety of machine designs.
SRT-03 rotary tables fitted with precision four point contact preloaded ball bearings. Low and high speed (1000 RPM) windings and resolution to 0.2 arc-sec available.
SRT-03 DDR Rotary Table equipped with a high-accuracy encoder mounted directly to the rotor to provide improved positioning accuracy and to eliminate backlash, positioning delays and maintenance requirements.
SRT-03 DDR (direct drive rotary) can be used as a flexible indexer, providing programmable, rapid indexing far exceeding the throughput of conventional mechanical or variable reluctance technology indexers. It can also be used for replacing mechanical transmissions such as gearboxes, timing belts, and rack and pinion reducers.
Specifications:
o peak torque 10 Nm
o stage height 65 mm
o stage diameter 115 mm
o stage center opening 30 mm
o resolution 0.2 arc-sec
o repeatability 0.5 arc-sec
o accuracy 5 arc-sec
For more information visit http://www.intellidrives.com/direct-d...
|
|
|
|
|
|
|
|
