Rotary Hammer drills, levels, and chisels.
Rotary Hammer drills, levels, and chisels. |
|
|
March 31, 2006 -
Featuring vibration-reducing construction and rubber-insulated handles, KHE 75 SDS-Max enables users to move between masonry drilling and chiseling operations without switching tools. It employs S-automatic safety clutch and Vario-Tacho-Constamatic electronic speed control, which enables unit's 10.5 A motor to deliver no-load variable speed from 140-280 rpm and 1,325-2,600 bpm. Rotational torque is rated at 575 lb-in., and impact energy is variable from 1.0-10.0 J/blow.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Metabo Corp.
1231 Wilson Dr.
West Chester, PA, 19380 4243
USA
New Rotary Hammer from Metabo Offers Power, Versatility, Comfort and Safety

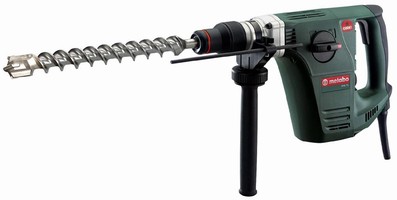

West Chester, PA, March 2006 -- Metabo Corporation, a leading international manufacturer of professional grade portable electric power tools and abrasives for industrial, construction and welding applications, has expanded its line of powerful rotary hammers to include a new model that provides increased power and versatility, as well as user comfort and safety. The new KHE 75 SDS-Max is ideal for drilling large holes, leveling walls and medium-heavy chiseling.
The versatile KHE 75 combination hammer allows users to quickly and easily move between masonry drilling and chiseling operations without switching tools. The KHE 75 offers high rotational torque of 575 inch-lbs. and variable impact energy from 1.0 to 10.0 joules per blow. Its optimum drilling range using solid bits is 5/8" to 1-3/4" with a maximum capacity in concrete of 1-3/4" using solid bits, and 6" using core bits.
The KHE 75 is designed for comfort and safety. Vibration reduction construction and rubber insulated handles reduce user fatigue and discomfort, while Metabo's S-automatic safety clutch and extra long front handle protect against kick-back.
Ergonomic, rounded-off areas on the handle and motor casing allow users to find a comfortable working position. The large rear handle enables two-handed operation in harder applications, and the shift lever and speed settings are extra large for easy operation, even when the user is wearing gloves.
The 10.5 amp motor has a no-load variable speed of 140 rpm to 280 rpm, and 1,325 bpm to 2,600 bpm. Metabo's Vario-Tacho-Constamatic electronic speed control enables the tool to maintain a virtually constant speed between no-load and load for maximum drilling speed. To protect the gear mechanism and motor from overheating, the overload clutch limits the maximum amount of torque applied if the tool blocks during operation.
To increase its service life, the KHE 75 features a tough magnesium die-cast gear housing, auto-stop carbon brushes with service indicator light, a spring-loaded lip seal to prevent dust penetration, a winding protection grid, and a durable pneumatic high-performance hammer mechanism.
The KHE 75 is available with Metabo's new CODE! anti-theft system, which operates via a one-touch infrared remote control to protect the tool against unauthorized use as reliably and easily as an electronic immobilization system on a car. Owners can enable and disable multiple CODE!-protected rotary hammers using a single key or assign each tool either its own key for a single user or multiple keys for multiple authorized users. In the event of a lost key, only the key needs to be replaced, not the tool.
The KHE 75 measures 18 1/2", weighs 14 lbs. and comes standard with a carrying case and depth gauge.
For more information, please visit http://www.metabousa.com/KHE_75.12277.0.html or contact Terry Tuerk, Metabo Corporation, 1231 Wilson Drive, West Chester, PA 19380. Tel: 800/ 638-2264; Fax: 800/ 638-2261; Email: ttuerk@metabousa.com; Web: www.metabousa.com.
Please send all reader service inquiries to Terry Tuerk, Metabo, 1231 Wilson Drive, West Chester, PA 19380.
ABOUT METABO: Metabo, a leading international manufacturer of professional grade portable electric power tools and abrasives for industrial, construction and welding applications, has international headquarters in Nurtingen, Germany and U.S. headquarters in West Chester, Pennsylvania. The company has focused its product development on technological advancements in electronic circuitry and mechanical design, which has resulted in high performance, durable electric power tools. The name Metabo is German for "metal-boring," symbolic of the first tool -- a metal-boring tool -- manufactured by the company in 1924.
|
|
|
|
|
|
|
|
