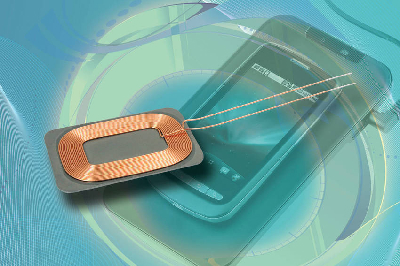

Receiving Coil supports wireless charging of 5 V electronics.
July 16, 2012 -
Measuring 38 x 27 mm, Model IWAS-3827EC-50 offer high permeability shielding and efficiency greater than 70% for Rx applications to 10 W. WPC-compliant coil features inductance of 10.7 µH at 200 kHz with ±5% inductance tolerance, DCR of 183 mW at +25°C, and Q of 30 typical at 200 kHz. For wireless power base stations and receivers, coil's high-saturation powdered iron is not affected by permanent locating magnets, and device shields sensitive components or batteries from charging flux.
Original Press release
Vishay Intertechnology, Inc.
63 Lincoln Hwy., P.O. Box 4004
Malvern, PA, 19355 2143
USA
Vishay Intertechnology Introduces New Powdered-Iron-Based, WPC-Compliant Rx Coil for 5 V Wireless Charging Circuitry
New Device Features High Permeability Shielding and Efficiency Greater Than 70 %
MALVERN, Pa. - Vishay Intertechnology, Inc. (NYSE: VSH) today announced a new powdered-iron-based, WPC-compliant (Wireless Power Consortium) receiving coil for the wireless charging of 5 V portable electronics. Offering a durable construction and high permeability shielding, the new IWAS-3827EC-50 provides high efficiency greater than 70 % for Rx applications to 10 W and is 33 % smaller than the standard 48 mm by 32 mm IWAS-4832FF-50 Rx coil, with dimensions of 38 mm by 27 mm.
For wireless power base stations and receivers, the IWAS-3827EC-50's high-saturation powdered iron is not affected by permanent locating magnets, and the device shields sensitive components or batteries from charging flux. As an alternative to Ferrite-based solutions, which can saturate in the presence of a strong magnetic field, the IWAS-3827EC-50 offers a magnetic saturation of 50 % at 4000 gauss.
The RoHS-compliant device features inductance of 10.7 µH at 200 kHz with a ± 5 % inductance tolerance, DCR of 183 mW at + 25 ºC, and Q of 30 typical at 200 kHz. The receiving coil features a lead length of 50 mm and tinned length of 10 mm.
Samples and production quantities of the IWAS-3827EC-50 Rx coil are available now, with lead times of five to eight weeks. Pricing for U.S. delivery only is $1.20 per piece in 10,000-piece quantities. Follow wireless charging solutions from Vishay at http://twitter.com/vishayindust.
