Rear-Dump Trailer provides load capacities to 78 yd³.
June 7, 2004 - Designed with THINWALLâ„¢ extruded, hollow-core, aluminum sidewall panels, THINWALL dump complies with codes for road-friendly limits for Canadian provinces of Ontario and Quebec. It features tri-axle THINWALL dump design with self-steering, forward lift axle. Measuring 45 ft long with 98.5 in. interior width, trailer utilizes Shurloc side roll tarp, Hendrickson Intraax axles, and commercial S95DC40-320 hoist.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Titan Trailers Inc.
1129 Highway # 3
Ontario, , N4B 2W6
Canada

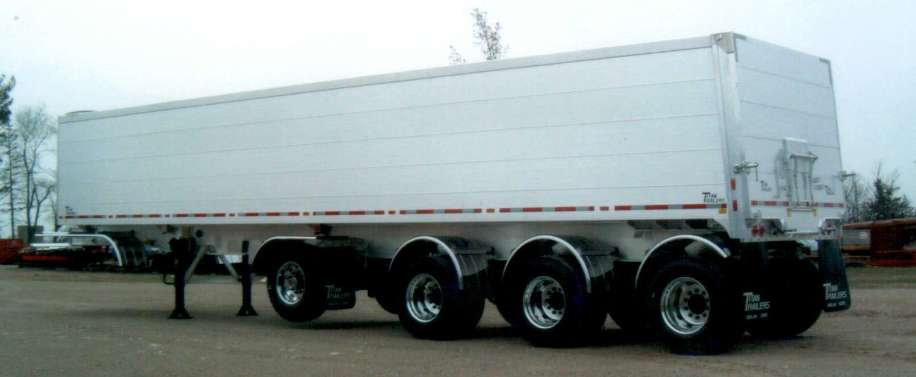

New Rear-Dump from Titan Maximizes Capacity for "Road-Friendly" Ontario and Quebec
Delhi, ON: Titan Trailers Inc. has introduced a new all-aluminum rear-dump trailer that provides load capacities of up to 78 cubic yards while remaining in compliance with the new harmonized codes for "road-friendly" limits for the Canadian Provinces of Ontario and Quebec.
Designed with Titan's original THINWALLâ„¢ extruded aluminum sidewall panel, the new Titan rear-dump was custom-built for Mitchel Transport of St. Thomas, Ontario. Titan originated the smooth-side all-aluminum trailer body when the company developed and patented the THINWALL panel process in 1999. The THINWALL panel now sets an industry standard for live-floor and tipper trailers in many bulk-hauling markets. The tri-axle THINWALL dump design offers lower operating costs, excellent backhaul versatility and maximum durability for truckers hauling bulk grain and aggregate. With its self-steering forward lift axle, the multi-axle configuration meets harmonized requirements for hauling within certain areas of Canada.
At 45-feet long with a clear 98.5" interior width from side-to-side, the THINWALL dump handles loads of more than 78 cubic yards with ample strength for heavy materials. Also featuring a THINWALL aluminum floor, the Titan dump body combines outstanding strength and light weight with smooth inside walls for clean, quick unloading. With no posts for loads to hang up on, the Titan semi-dump requires less clean-up and maintenance and provides more resistance to corrosion.
The hollow-core aluminum floor also lowers the trailer's centre of gravity, providing greater stability on the road and reduces the risk of tipping when dumping. This is especially critical when unloading in uneven fields and yards.
The smooth underside also minimizes ice build-up on winter roads for improved durability and fuel economy.
Specifications: Titan Tri-axle THINWALL Rear Dump
Length: 45' (14 m)
Width: 102" (2.59 m)
Overall Height 11.3' (3.44m)
Volume: 78.65 cu.yd. (60 m³)
Weight: 20,525 lb. (9,310 kg) + tarp
Side Panels: 14" (356 mm) high heavy-duty aluminum; patented THINWALLâ„¢ horizontal hollow-core extruded panels
Axles: Hendrickson Intraax
Hoist: Commercial S95DC40-320
Tarp: Shurloc Side roll
About Titan
Established in Delhi, Ontario, in 1979, Titan Trailers is a world-class innovation leader in the hauling industry long recognized for job-specific functionality and attention to manufacturing detail. Titan Trailers offers cost-conscious haulers a complete line of trailers utilizing advanced design and manufacturing technologies based on the patented THINWALL extruded aluminum panel. With the THINWALL process, Titan originated the move to smoothside trailer design for improved fuel efficiency and payload capacity. Other Titan innovations include front access doors, the liftable "Hagen" shedder and an improved front catwalk for enhanced operator safety. Titan's production plant includes complete facilities for aluminum and steel fabrication as well as extensive in-house computer modelling systems for trailer design and testing. Titan focuses its extensive R&D activities on making its trailers the best business choice for operators in the custom trailer market.
For more information about Titan Trailers, visit the Titan website at www.titantrailers.com or contact:
Sandy Kloepfer
Tel: 519-688-4826
e-mail: sandy@titantrailers.com
|
|
|
|
|
|
|
|
|
|
