RJ45 Cat5 Switch offers Telnet remote control.
March 12, 2012 -
Housed in 1U full rack size enclosure that provides EMI/RFI shielding, IP Addressable PathWay® Model 7328 allows connection to any 1 of 8 RJ45 interface devices from 1 Common RJ45 device. RJ45 interface device connected to Common port can be shared among 8 other devices connected to 8 ports labeled A through H. User can lock out front panel push-buttons, control switch position, and monitor switch from remote location via 10/100 Base-T LAN Access Ethernet connection and TELNET commands.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Electro Standards Laboratories
36 Western Industrial Dr.
Cranston, RI, 02921 3403
USA

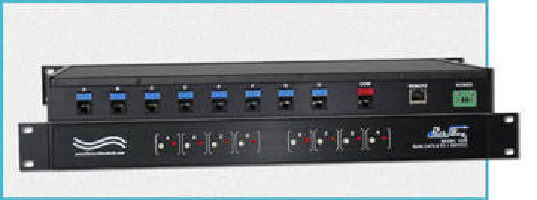

Model 7328 IP Addressable 8-Position Switch Features Telnet Remote Control and Password Protection
The PathWay® Model 7328 is an IP addressable, RJ45 Cat5 switch that allows quick connection to any one of eight RJ45 interface devices from one Common RJ45 device. The RJ45 interface device connected to the Common port can be shared among eight other devices connected to the 8 ports labeled A through H.
Password protection provides security for the remote control operation. The user can lock out the front panel push-buttons, control the switch position and monitor the switch from a remote location via a 10/100 Base-T LAN Access Ethernet connection and TELNET commands. Eight push-buttons allow local individual control of the switch positions.
The Model 7328 saves wear and tear on computer equipment by eliminating the need to plug and unplug Cat5 RJ45 patch-cords. The unit switches all eight pins of the RJ45 interface and is transparent to data speed and format. Eight front-panel LED's display switch position and power status.
PathWay® Model 7328 switch is housed in a 1U full rack size enclosure that fits into a standard 19" rack. This durable black anodized enclosure provides EMI/RFI shielding. The Model 7328 retains its last switch position in the event of power loss and continues to pass data. This reliable switch is certified to meet or exceed CAT5 performance.
The Model 7328 is supplied with a UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module that supplies 12 VDC, 500 mA to the unit. This module features a 2-prong, US, non-polarized plug. Optionally available is Cat. No. 517277, a CE, RoHS and UL listed table mount wide range power module. This module features 100VAC/240VAC, 50Hz/60Hz and an IEC 60320 C14 inlet that is ideal in supporting international applications.
This Model 7328 Cat5 switch is manufactured in the USA by Electro Standards Laboratories in Cranston RI, a premiere manufacturer of network products for over 30 years. To view more about Model 7328, visit: http://www.electrostandards.com/ProductDetail/?productid=2266. Electro Standards' staff of knowledgeable sales engineers is available to assist with product and application questions: 401-943-1164, eslab@electrostandards.com
|
|
|
|
|
|
|
|
