Quick Disconnect Fitting simplifies tubing connections.
April 15, 2005 - Series F-4150, 10-32 UNF male-threaded Quick Disconnect is available in 3 barb configurations: straight, elbow, and tee. Depressing latching pushbutton enables removal of barb, and re-insertion of barb locks it into position. Barbs can be provided for 1/16 in., 1/8 in., or .170 ID tubing. Design allows fitting to swivel 360ļ.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
Air Logic, Div. Fred Knapp Engraving Co., Inc.
5102 Douglas Ave.
Racine, WI, 53402

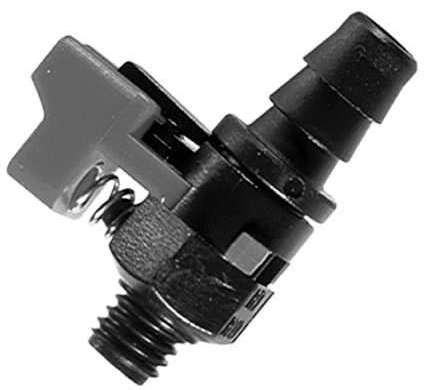

10-32 UNF Quick Disconnect
The F-4150 series Quick Disconnect (Patent # 5,695,223) simplifies tubing connections during assembly. The 10-32 UNF male-threaded Quick Disconnect is available in three barb configurations: straight, elbow, and tee. Depress the latching pushbutton to remove the barb; re-insertion of the barb locks it into position. Barbs can be provided for 1/16‚ÄĚ, 1/8‚ÄĚ, or .170 I.D. tubing. The unique design allows the fitting to swivel 360ļ. A FREE SAMPLE is available upon request.
For additional information contact Air Logic, Website http://www.air-logic.com ∑ Email firstname.lastname@example.org ∑ Call (800) 558-5950 or (262) 639-9035 ∑ Fax (262) 639-5996
