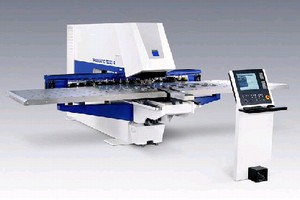

Punching Machine offers working range of 50 x 80 in.
May 16, 2006 -
Providing punching speeds up to 600 hits/min, entry-level TC 1000 R includes automatic tool changer and all-tool rotation, which minimizes tooling requirements. Multishear is used for edging work, while Multibend provides bending, and Multitool integrates 10 punches in 1 station. By using Multitool, machine's linear magazine can accommodate up to 150 tools. It can also high-speed mark at 1,300 strokes/min. Software component enables programming with touchscreen or keyboard.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
TRUMPF Power Tools
111 Hyde Rd., Farmington Industrial Park
Farmington, CT, 06032
USA
New TC 1000 R Punching Machine from TRUMPF
FARMINGTON, Conn., May 2, 2006 - TRUMPF has introduced a new compact punching machine, the TRUMATIC 1000 R, to the North American market.
"Designed as an entry-level punching machine, the TC 1000 R is a cost-effective way for beginners to enter the field of CNC sheet metal processing," said Mike Morissette, bending and punching machine product manager for TRUMPF Inc. "The idea is convincing. No other punching machine is so easy to install, operate and program."
The TC 1000 R features a working range of 50 by 80 inches, punching speeds of up to 600 hits per minute and an automatic tool changer. Alltool rotation, standard on all TRUMPF punching machines, results in reduced tooling requirements and better part quality. All current TRUMPF punching tool technologies have been adapted to the TC
1000 R. The Multishear can be used for high-quality edging work, as well as the Multibend for bending, and the Multitool, in which up to ten different punches can be integrated at one tool station. Tools for extrusions, threads and forming can also be used. By using the Multitool, the machine's linear magazine can accommodate up to 150
tools. It can also high speed mark at 1,300 strokes per minute.
"An exciting new feature for newcomers to CNC punching is introduced on the TC 1000 R," says Morissette. "A new software component makes programming simple, from creating the drawing to manual sheet layout to processing. Less complex parts can be programmed
quickly and easily, even on the shop floor." According to a survey of TRUMPF customers, approximately 80 percent of parts processed using punching fall into this category, and can be processed using the simplified programming. More complex components are programmed using ToPs 300 basic, a customized version based on the proven TRUMPF punching software ToPs 300. Both ToPs 300 basic as well as the software component for simple programming are included in the machine's standard package.
"The idea is for customers to get their hands on a finished metal part quickly," explains Morissette. "Demand for an easy-to-learn programming system drove the introduction of the new, enhanced software. Now, customers don't need previous programming skills. They can intuitively program the software using the touch screen or
keyboard on the machine control panel."
The TC 1000 R was designed for small-sized sheet metal processing companies, companies that are looking for a beginner model to get them into automated sheet metal processing and that don't need to integrate their machines into a fully automated production flow.
For more information on the TC 1000 R or other punching machines, please contact Mike Morissette, TRUMPF Inc. product manager for punching and bending at Mike.Morissette@us.trumpf.com or 860-255-6036.
TRUMPF is one of the world's largest producers of fabricating machinery and a world market leader in lasers used for industrial production technology. Additional company information is available at: www.us.trumpf.com Photos are available.
|
