Pressure Transmitter performs hydrostatic level measurement.
May 11, 2005 - SITRANS P MPS includes submersible sensor for measurement in wells, tanks, channels, and dams. Transmitters are available for various measuring ranges and with optional explosion protection. With 0.3% accuracy, temperature-compensated product features flush-mounted piezo-resistive sensor with stainless steel diaphragm as well as electronic circuit fitted together with sensor in stainless steel housing. Cable contains strength cord and vent pipe.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Siemens Energy & Automation, Inc., Spring House Location
1201 Sumneytown Pike
Spring House, PA, 19477-0900
USA

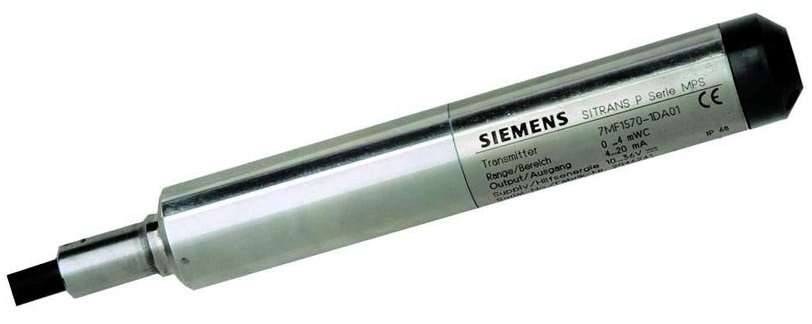

SITRANS P MPS Submersible Pressure Transmitter for Hydrostatic Level Measurement
The SITRANS P MPS pressure transmitter from Siemens includes a submersible sensor, for hydrostatic level measurements in wells, tanks, channels and dams. These pressure transmitters are available for various measuring ranges and with explosion protection as an option. A junction box and cable hanger are also available as accessories to provide easy installation. The compact transmitters feature an accuracy of 0.3%, and are ideal for use in oil and gas, shipbuilding, and water and wastewater industries.
The MPS series transmitters have a flush-mounted piezo-resistive sensor with stainless steel diaphragm. They are equipped with an electronic circuit fitted together with the sensor in a small, stainless steel housing. The cable also contains a strength cord and vent pipe. The transmitter is temperature-compensated to work in a wide range of temperatures.
The hydrostatic pressure of the liquid column acts on the sensor diaphragm and transmits the pressure to the piezo-resistive bridge in the sensor. The output voltage of the sensor is applied to the electronic circuit where it is converted into an output current of 4-20 mA.
